16ER External Threading Inserts
Compare the listed sizes and interfaces, then send your current model code or drawing for a matching tool.

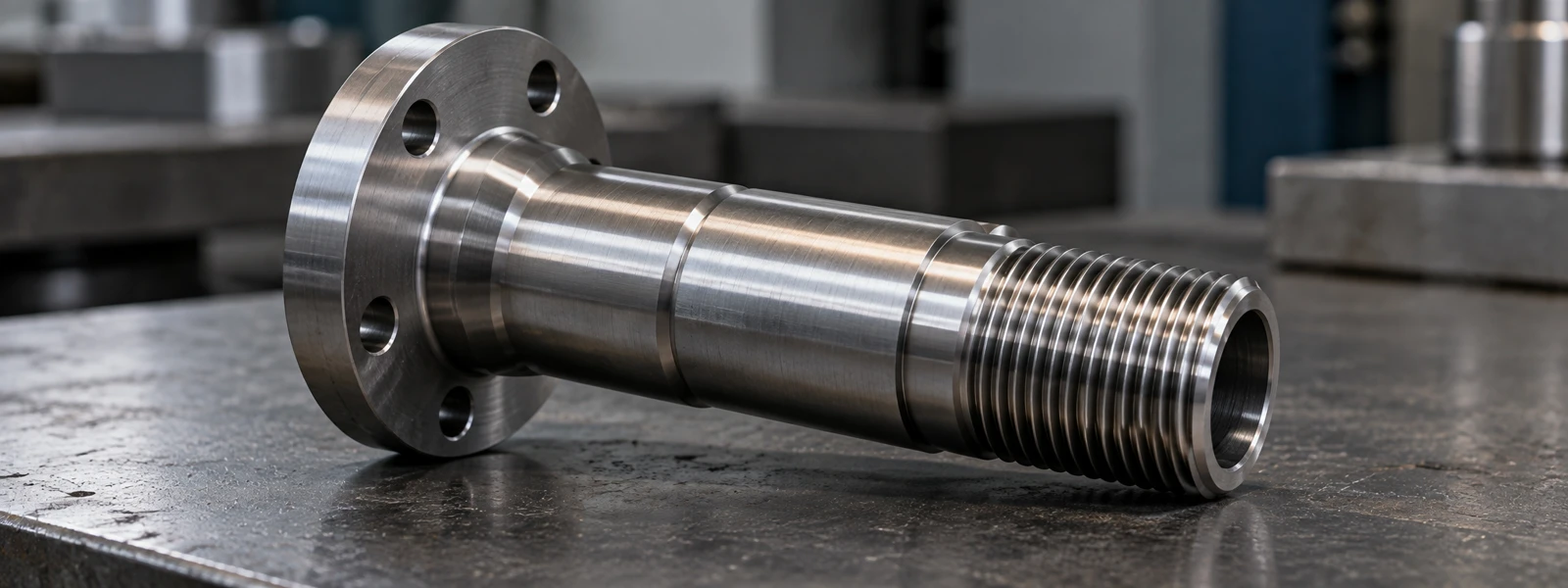

external BSPT thread turning
External Threading
- Thread references
- 2
- Compare
- Size · interface
- Send us
- Code / drawing
Model Reference
Thread Profiles & Pitches
Full-profile thread geometry and holder seat require confirmation for the quoted insert.
Swipe or scroll horizontally to view every column.
| Select | Designation | Profile | Pitch (TPI) | Location | Hand |
|---|---|---|---|---|---|
| 16ER11BSPT | BSPT | 11 | External | Right | |
| 16ER14BSPT | BSPT | 14 | External | Right |
No listed models match your search. Try a shorter code or describe your requirement.
Select a model above. You can also use the general quote button at the top of this page.
Have an existing part number or drawing? Include it in your inquiry for a direct match.
Need a metric AG60 thread? Send the pitch and holder code so we can match the exact insert.
Pocket Compatibility
Insert, Pocket & Tool Matching
Confirm the insert size, seat, clamping method and complete holder, cutter or drill-body designation before ordering a replacement.
Family geometry guide
Use this outline to identify the shape and dimensions to compare with your existing tool.
Swipe or scroll horizontally to view every column.
| Matching item | What to confirm |
|---|---|
| Thread profile | The listed rows are 11 and 14 TPI BSPT. For AG60 metric threading, send the exact pitch. |
| External seat | Confirm a 16ER-compatible external threading holder and its hand. |
| Shim and screw | Match the shim angle and clamp parts to the holder and thread helix. |
Selection Checklist
Choose the Right Configuration
Compare the listed model with the actual part and machine setup.
Swipe or scroll horizontally to view every column.
| Check | What to provide or compare |
|---|---|
| Thread standard | BSPT 11 / 14 TPI rows are listed; specify pitch for an AG60 metric request. |
| Tool position | External thread; provide holder code, hand and approach. |
| Part dimensions | Send major diameter, thread length and drawing when available. |
Tooling Package
Match the Cutting Tool to the Holder
16ER BSPT insert + external 16-size threading holder
Quote as one set
Quote the 16ER insert and, if needed, a 16-seat external threading holder, matching shim and fastening parts as separate line items.
Fit check
The pitch and thread profile must match; check holder hand and shim angle for the actual helix.
Related Products
Ordering Support
Frequently Asked Questions
What should I send for a quotation?
Send the external thread standard and pitch (or 11 / 14 TPI BSPT), holder code, workpiece material and quantity.
Are the matching parts included?
The quotation lists the selected cutting tool, holder or body, and any specified clamping parts separately.
Can I request another size or configuration?
Yes. Send the existing full code or a dimensioned drawing so the proposed configuration can be checked.
Specification-Led Quotation
Discuss Your Application
Send your model, material, operation and quantity.
We will review the tool interface and quotation variables before confirming an offer.
