Have a Model Code? Start Here.
Enter the complete insert or tool designation and current grade. We will check the dimensions, geometry and application before proposing a Vextrex alternative.

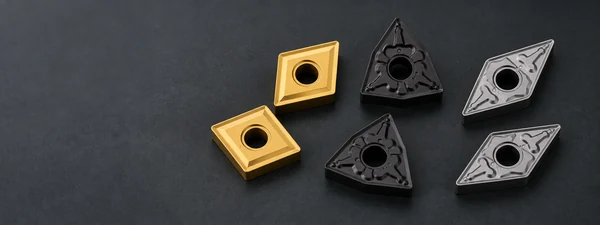

Carbide Inserts for Turning & Milling
Free standard insert samples for machining trials. Buyer pays freight.
No Model Code? Start With the Job.
Start with turning, milling, end mills, drilling, grooving or threading. Match the model, chipbreaker and technical grade to your job, or send a drawing for selection support.

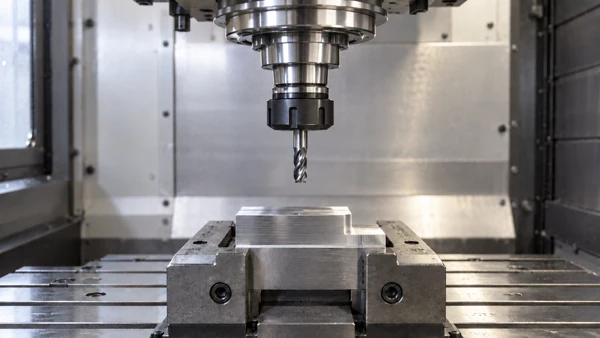

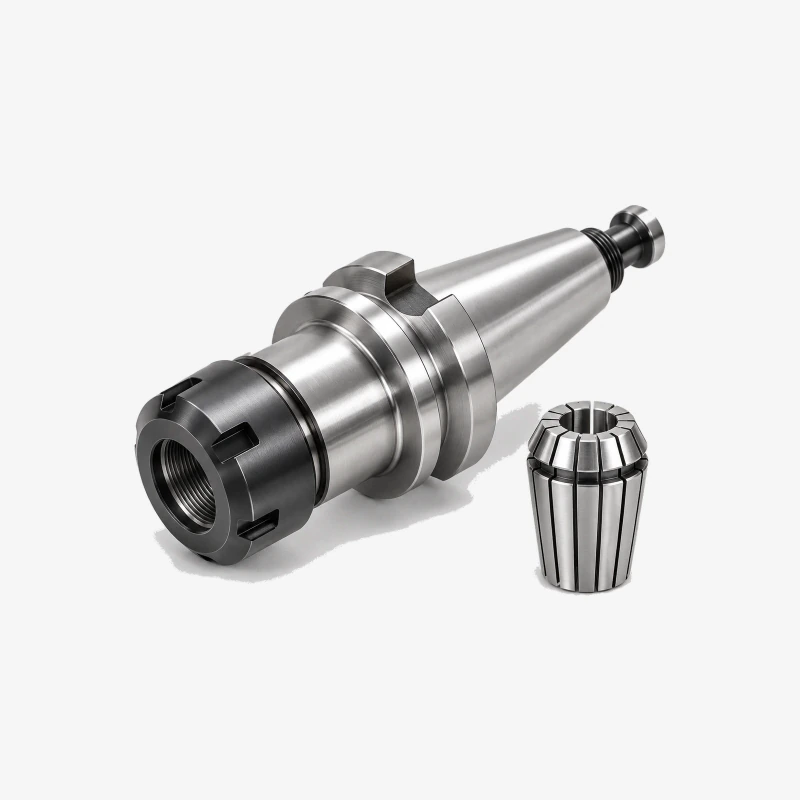

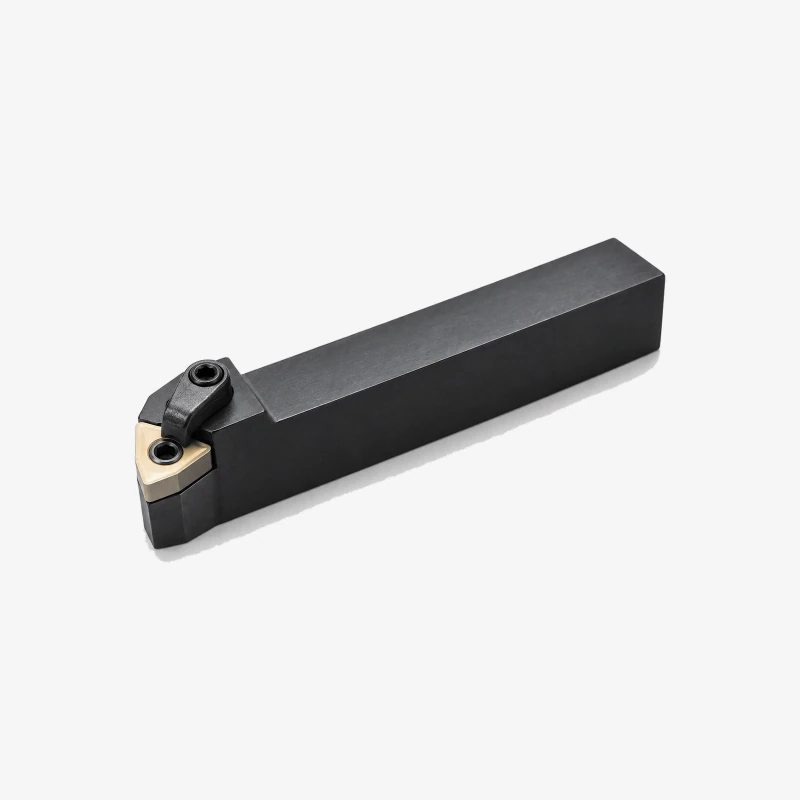

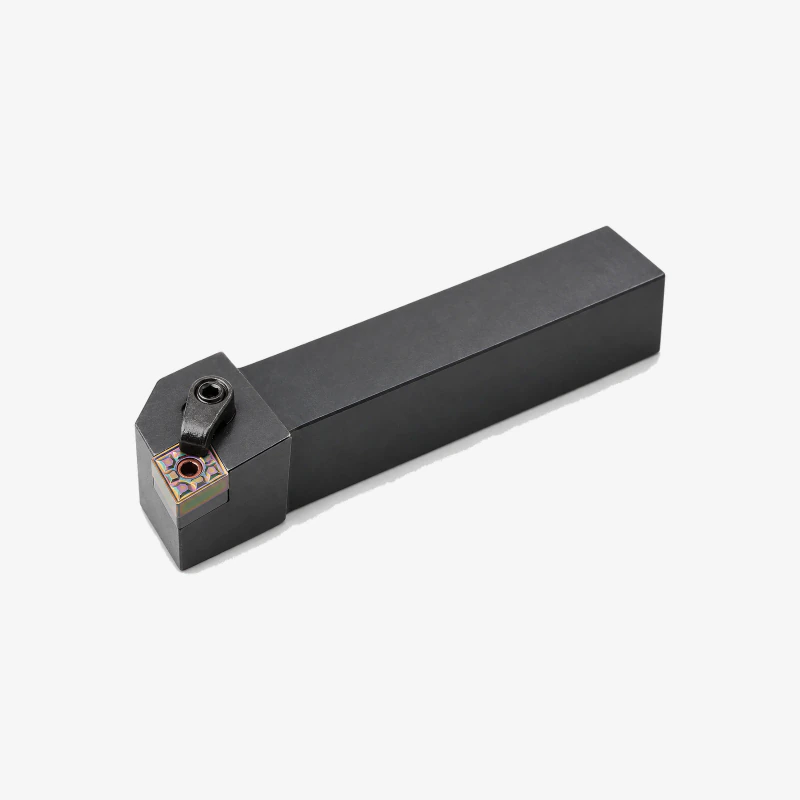

Need matching holders? View tool holders & accessories
With a code: check the designation, grade and holder fit
Without a code: select by operation, material and drawing

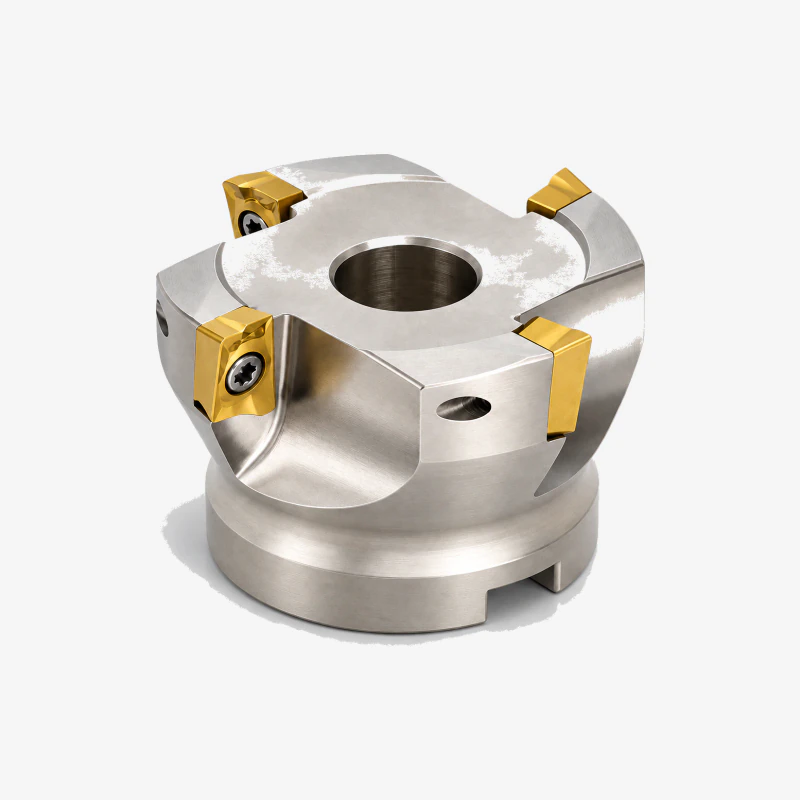

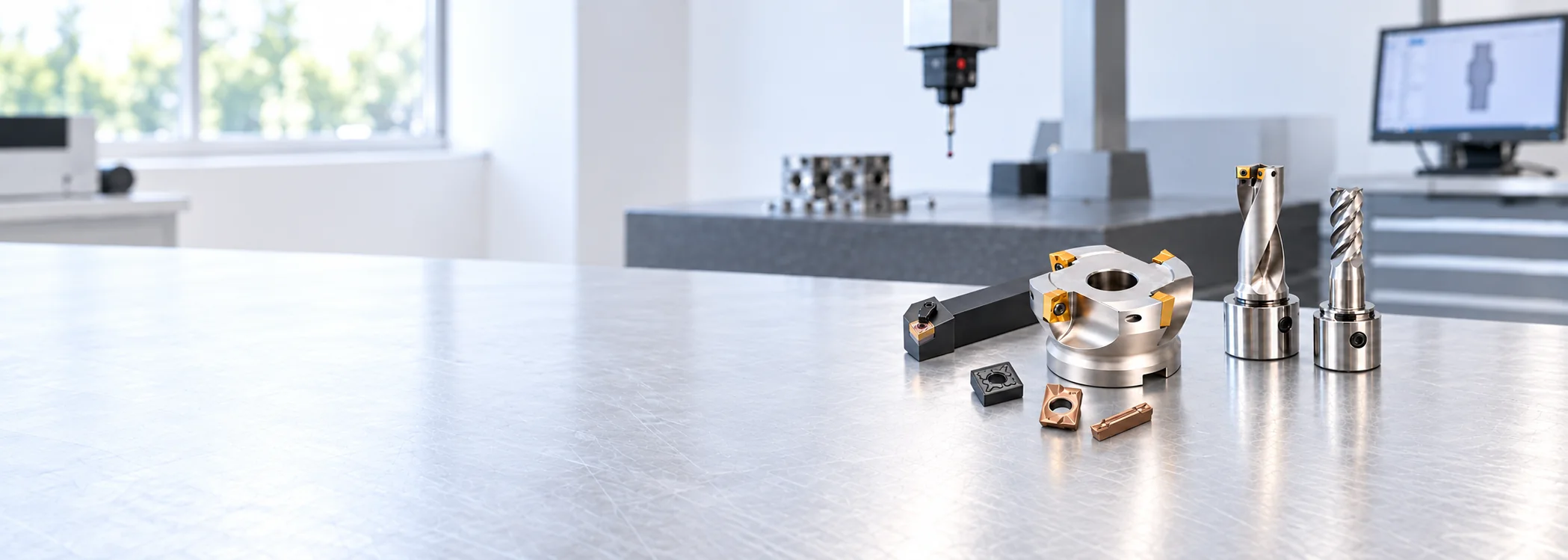

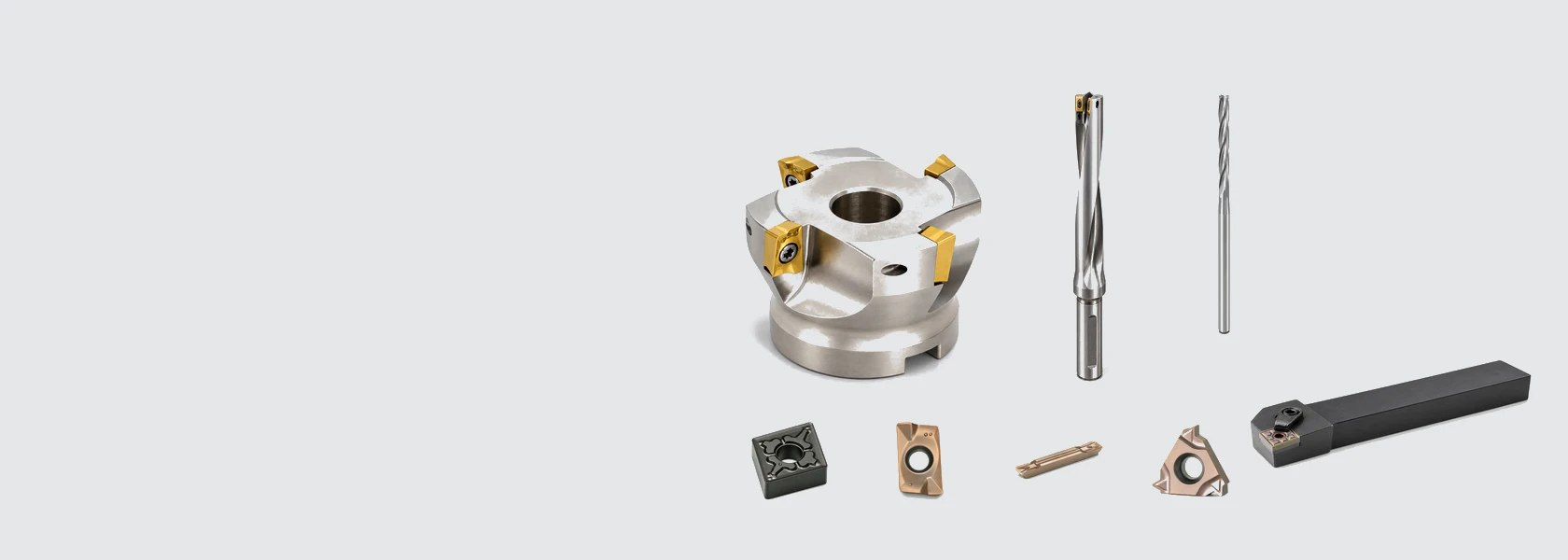

Representative Tool Families

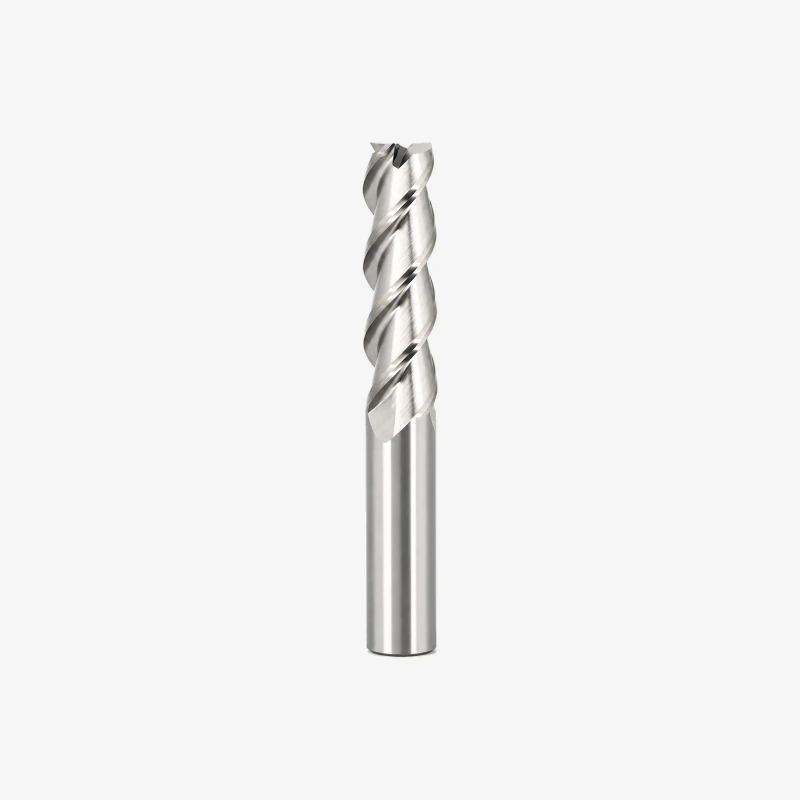

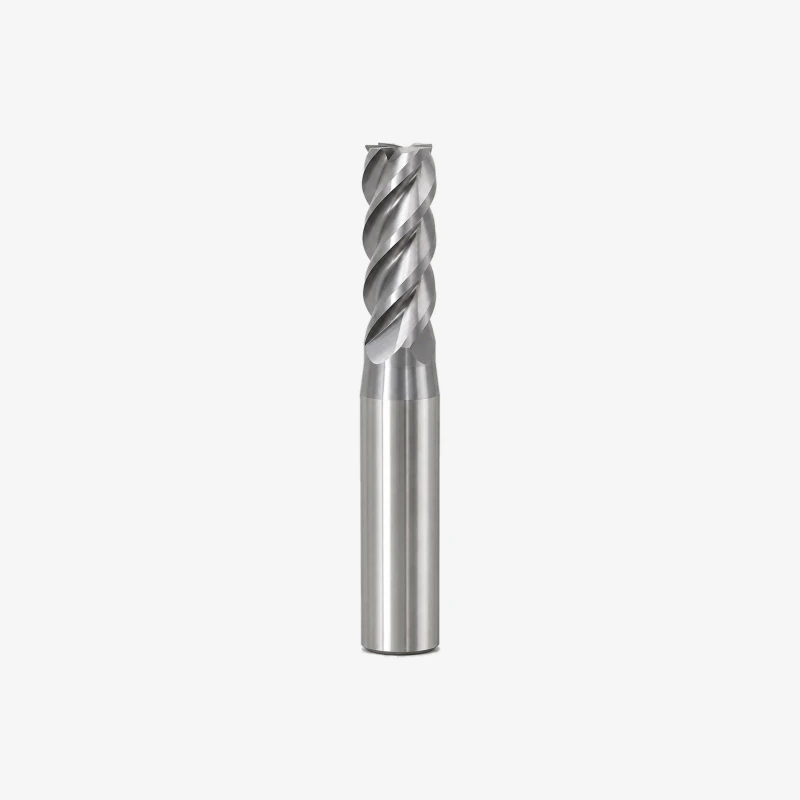

Compare turning and aluminum inserts, milling and drilling tools, end mills and matched holders. Open a product for model dimensions, technical configuration details and an inquiry.
Model-Specific Starting Parameters, Then a Machine Trial
For the selected insert model and grade, we recommend starting cutting speed (Vc), feed (f) and depth of cut (ap) after reviewing the material, holder, machine and coolant. These are starting recommendations; compare wear and finish on your own machine.

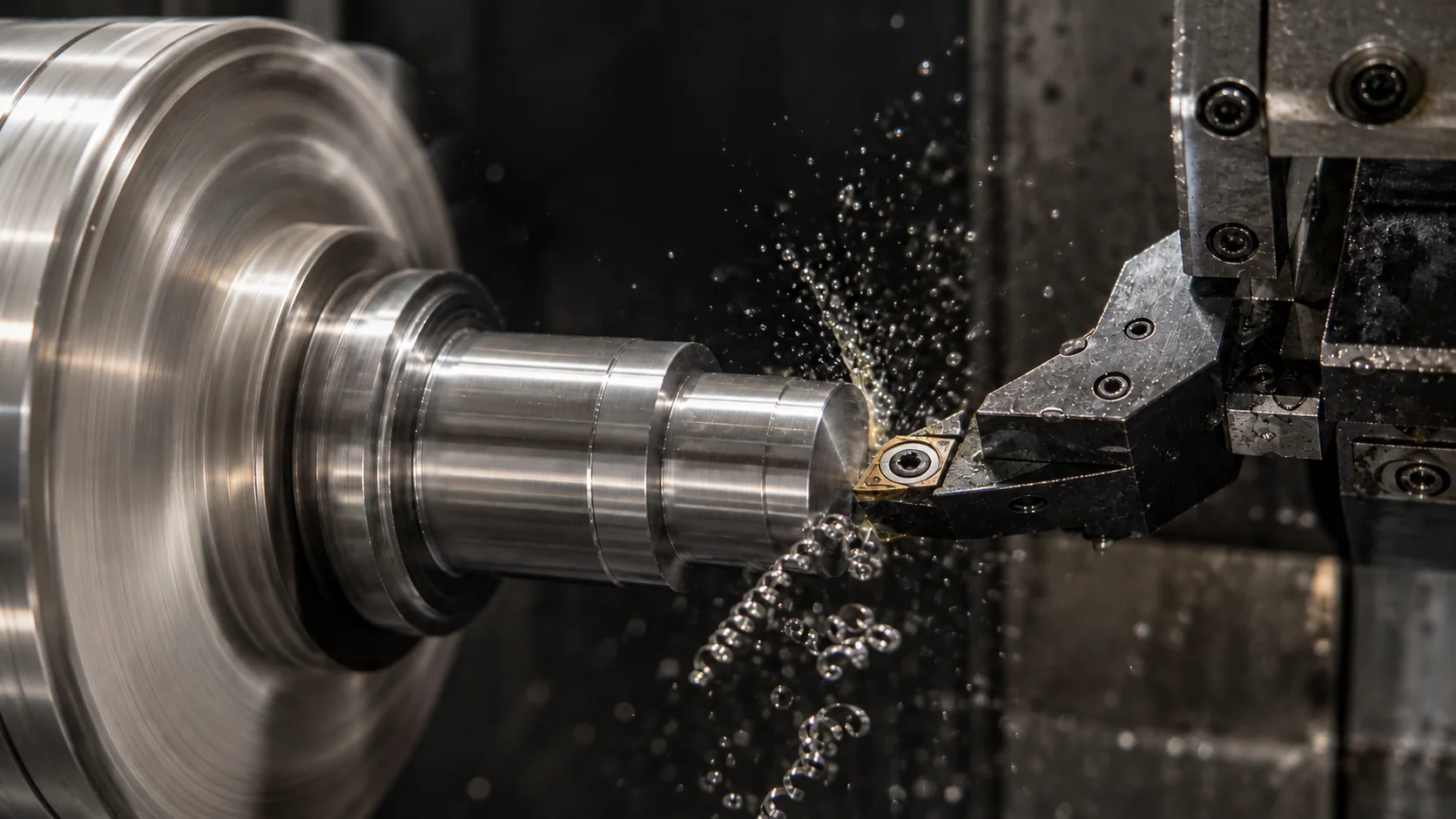

TURNING INSERT TRIAL
Benchmark Turning Inserts on Your Job

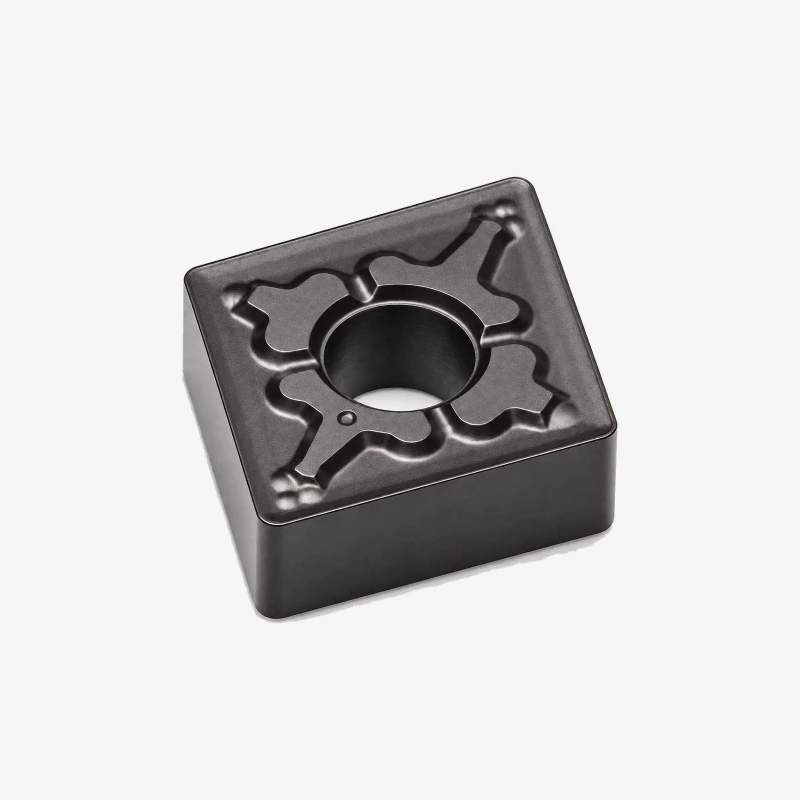

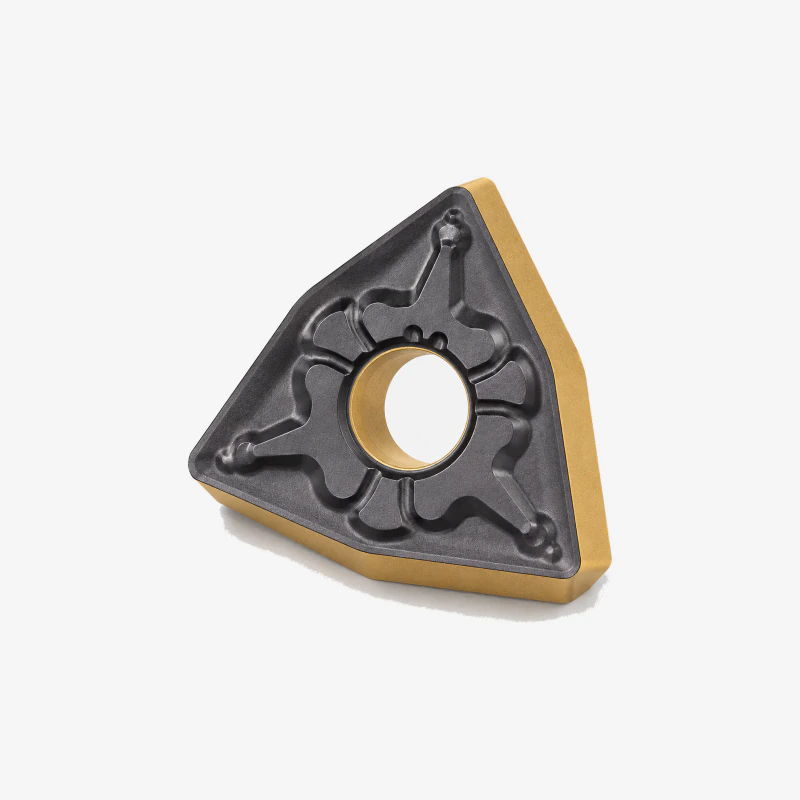

For a selected CNMG or WNMG model and grade, confirm the workpiece and setup first. Then use model-specific starting speed, feed and cut depth for a controlled trial against your current insert.

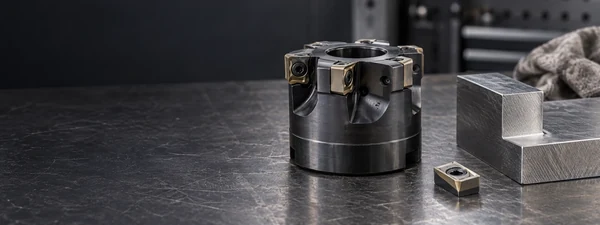

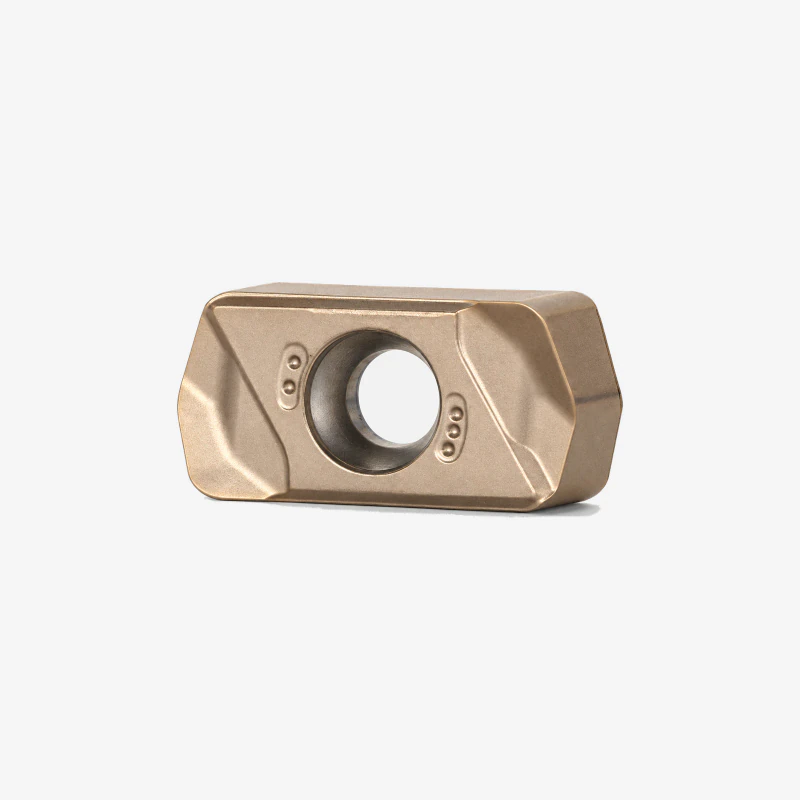

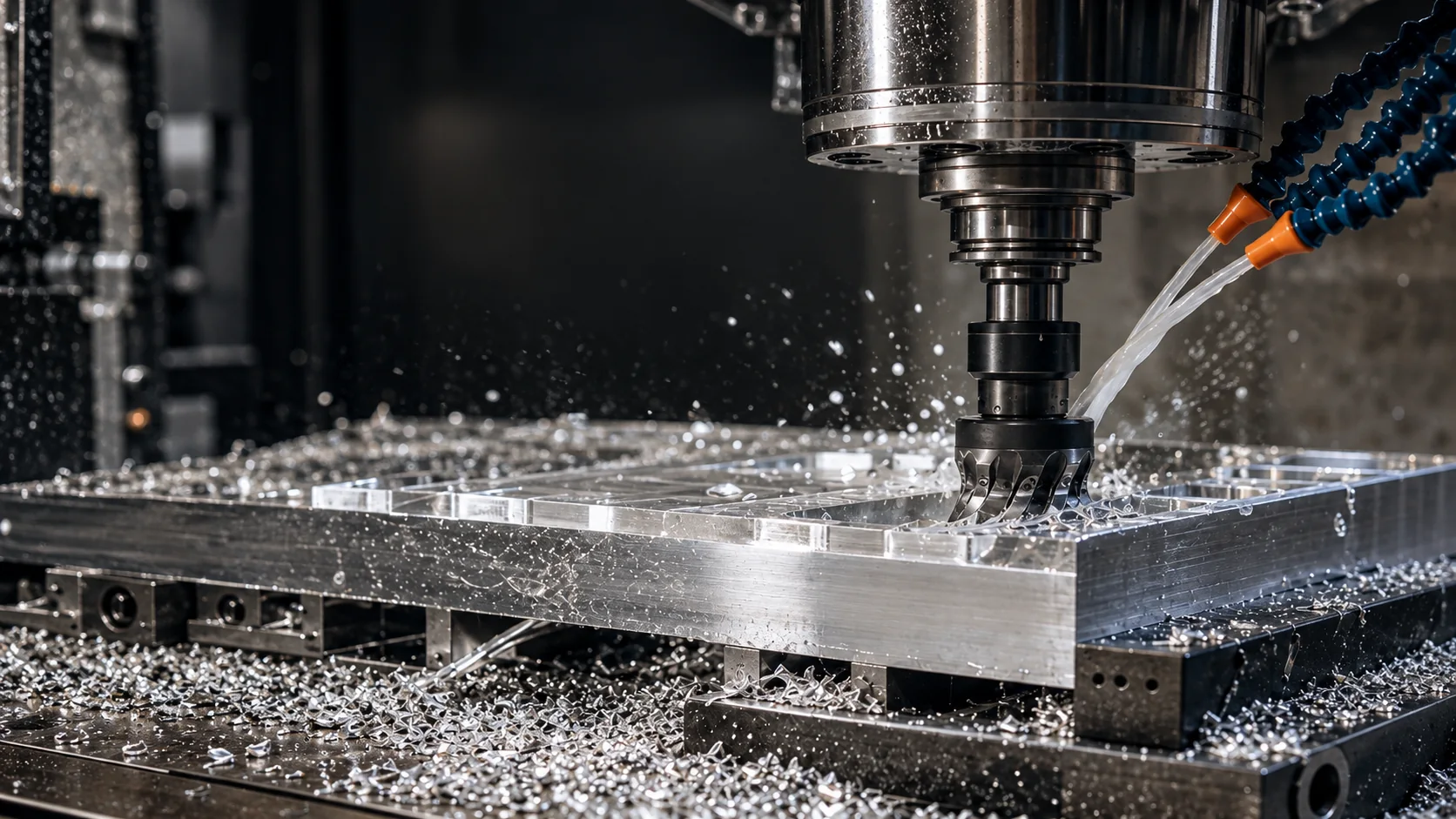

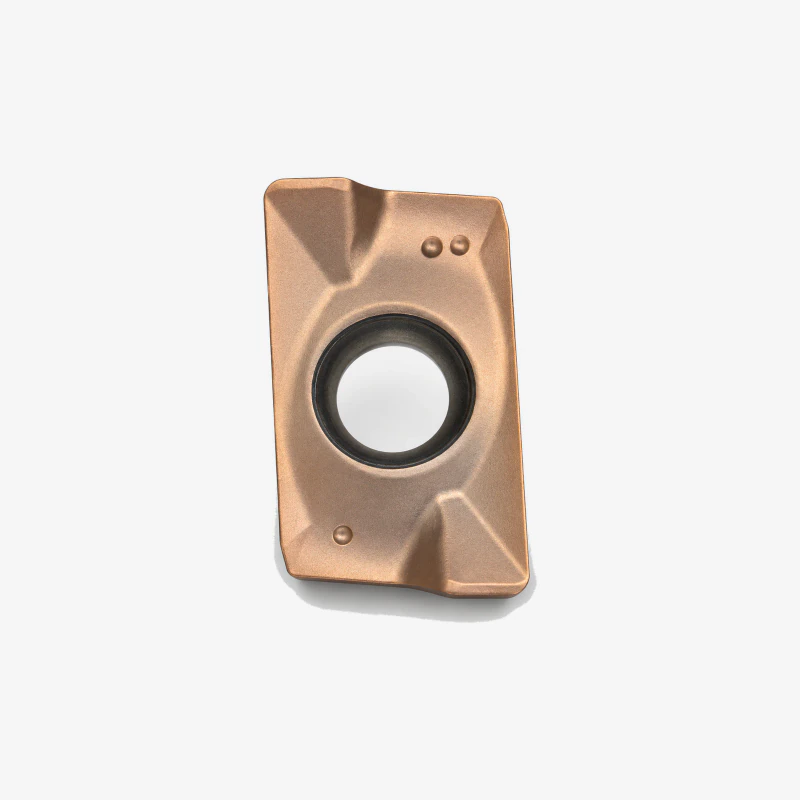

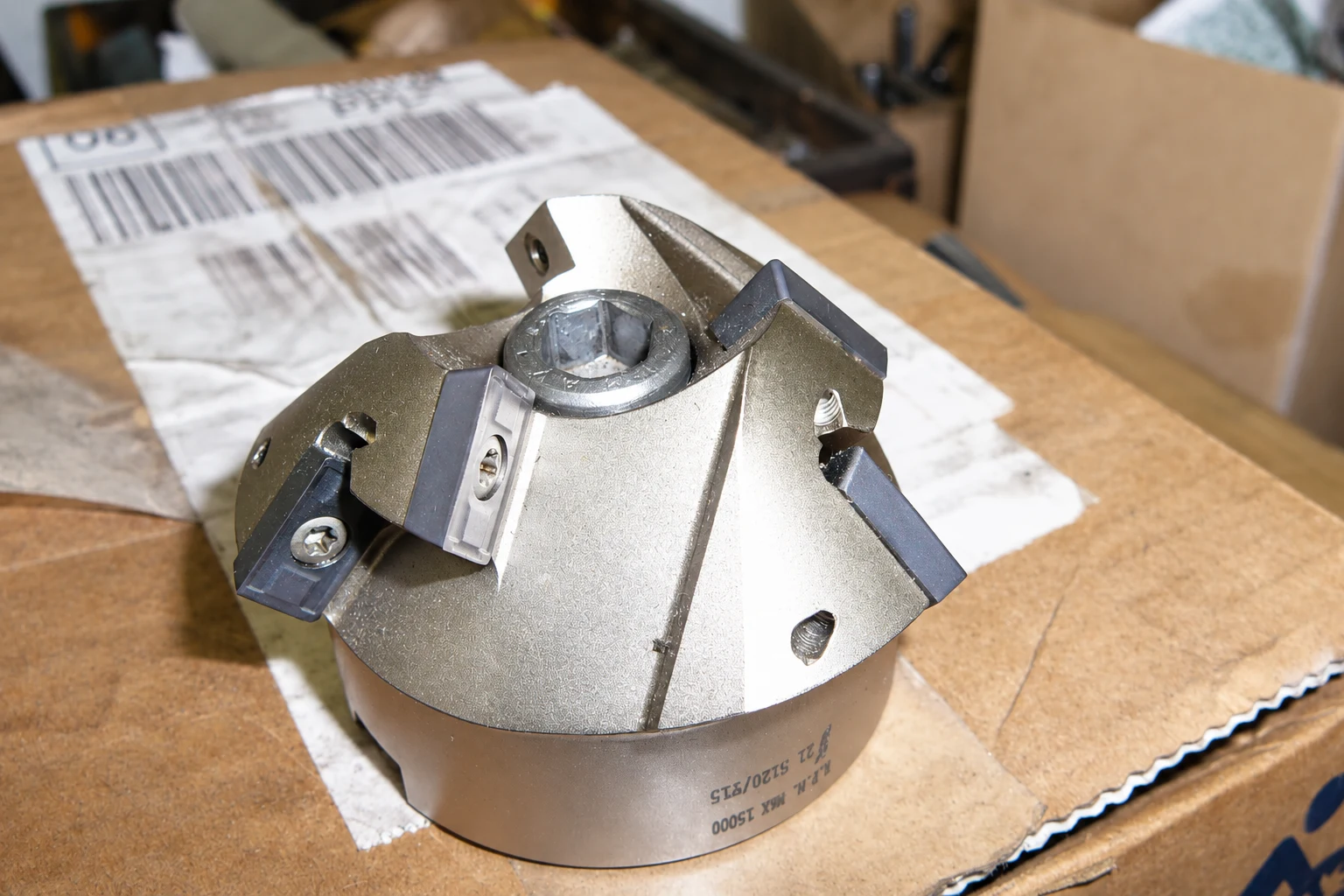

MILLING INSERT TRIAL
Compare Milling Inserts Under One Setup
Record the workpiece, cutter and insert code, speed, feed, engagement and finish target. Compare candidate inserts under the same setup before assessing wear and cost per part.

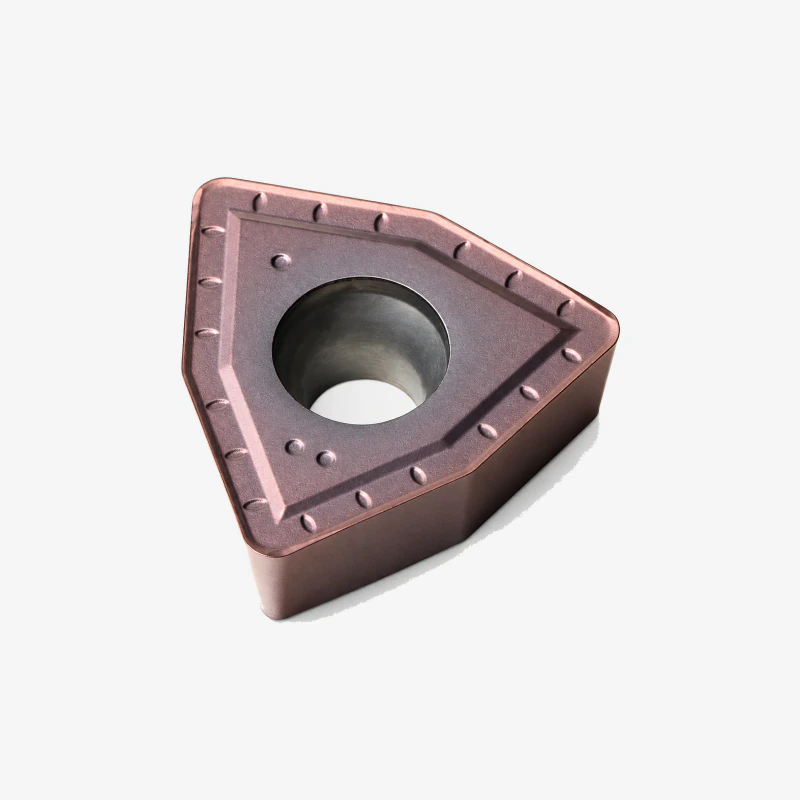

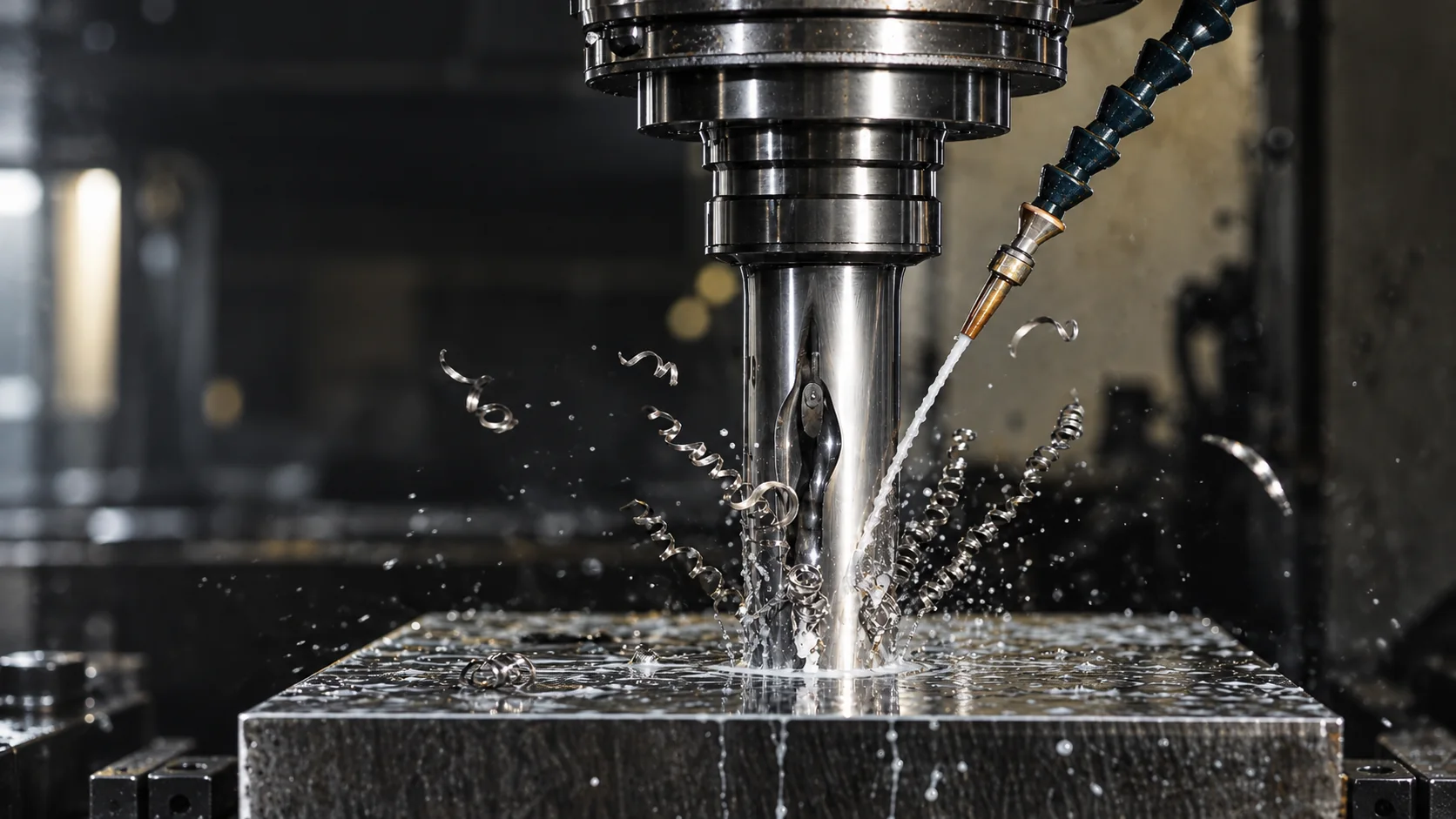

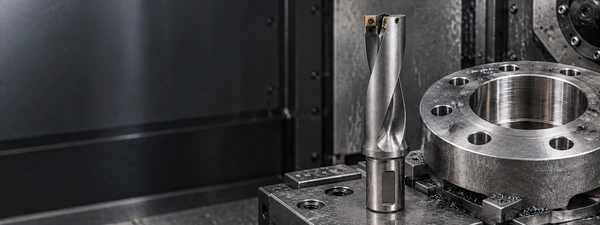

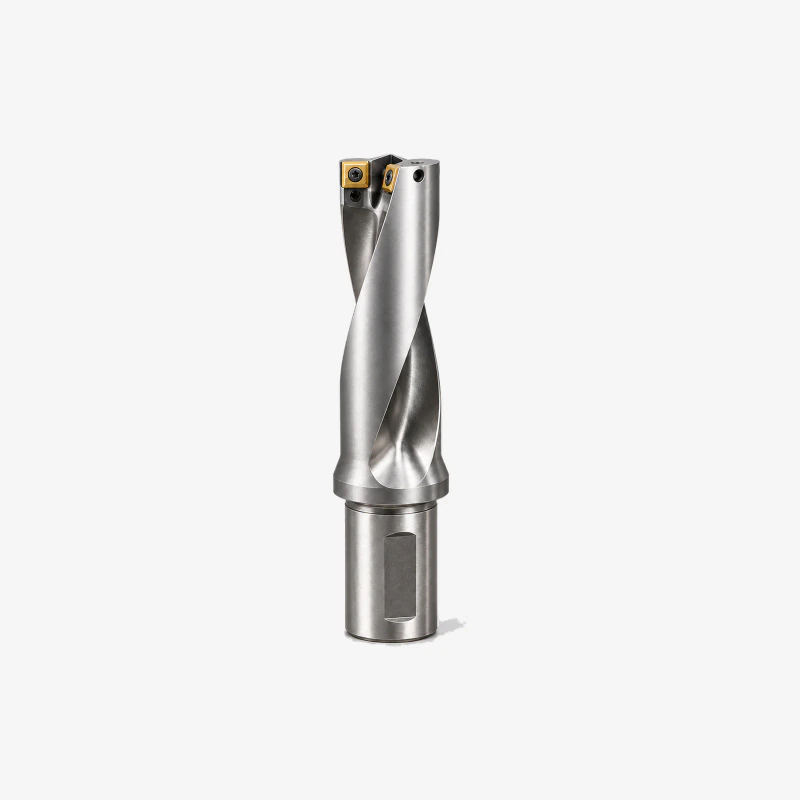

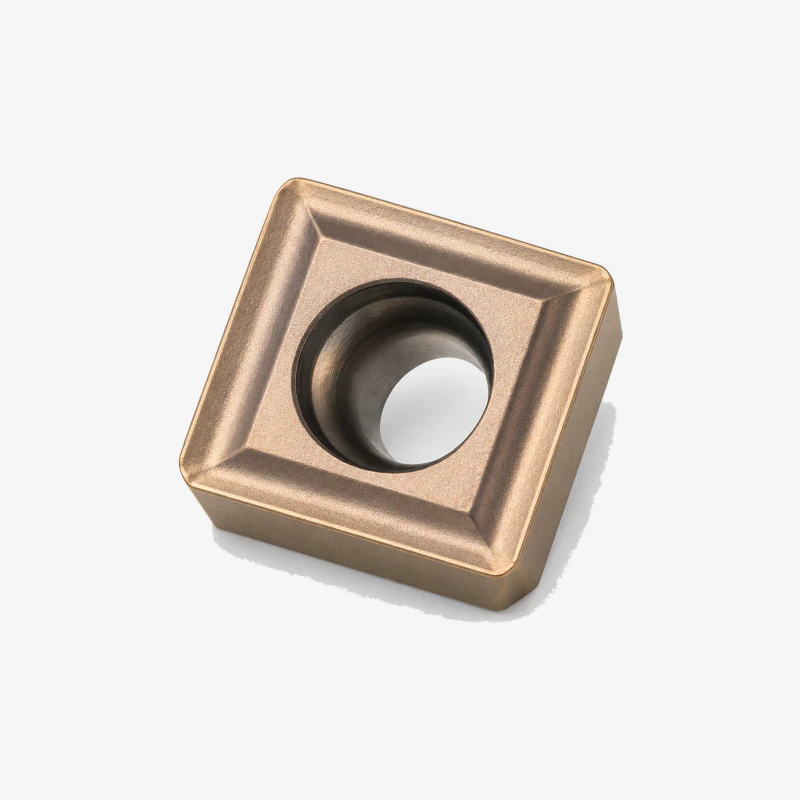

DRILLING APPLICATION
Start with the Hole, Material and Machine
Send the hole diameter and depth, workpiece material, machine interface and any existing drill or insert code. A photo or drawing is enough if the full code is unknown.

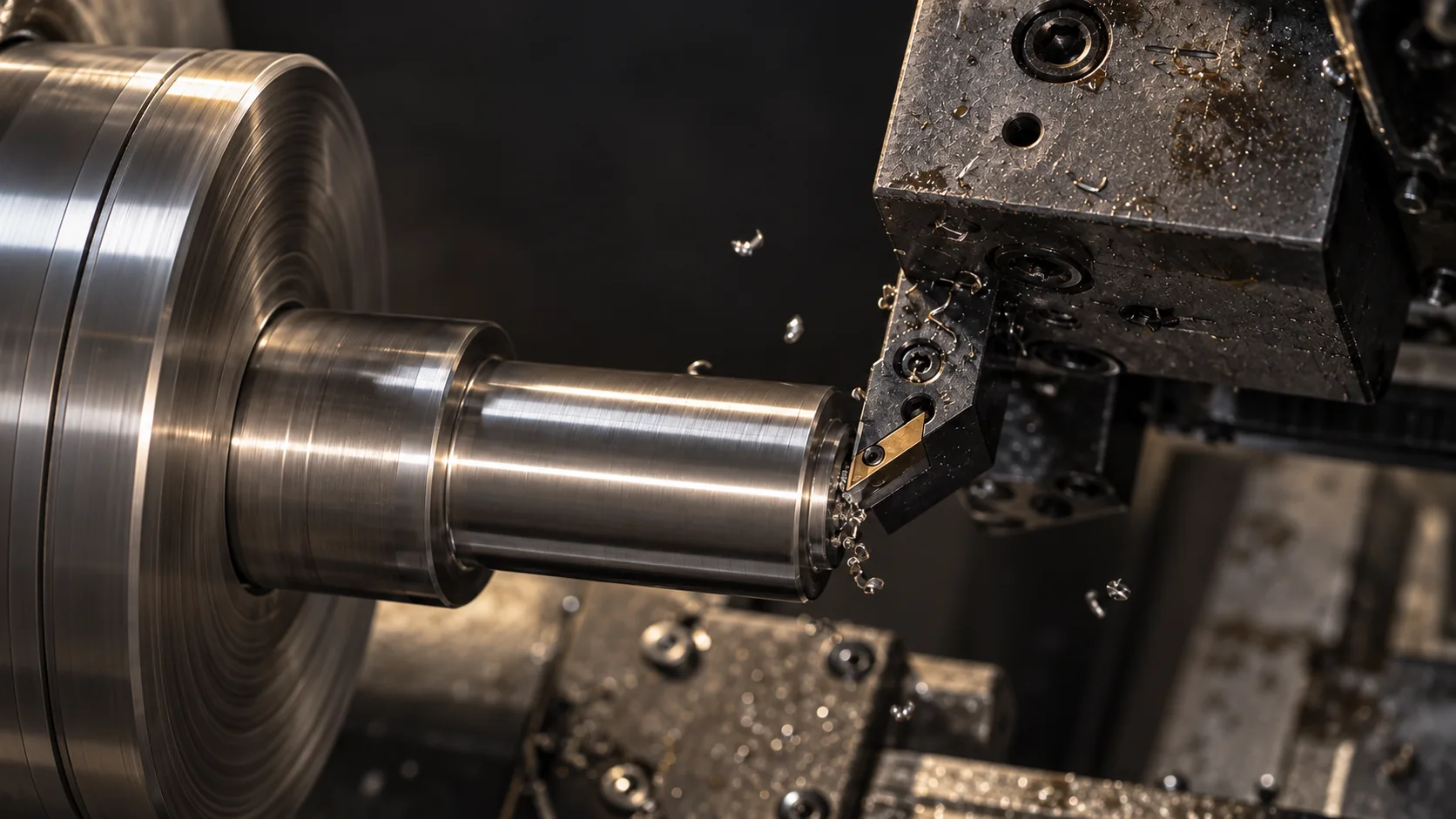

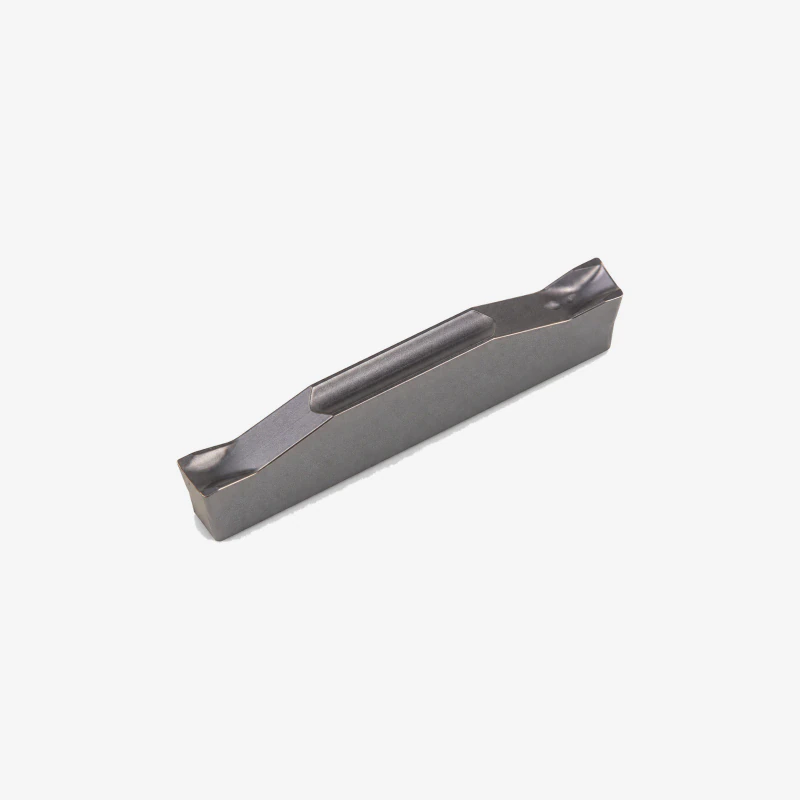

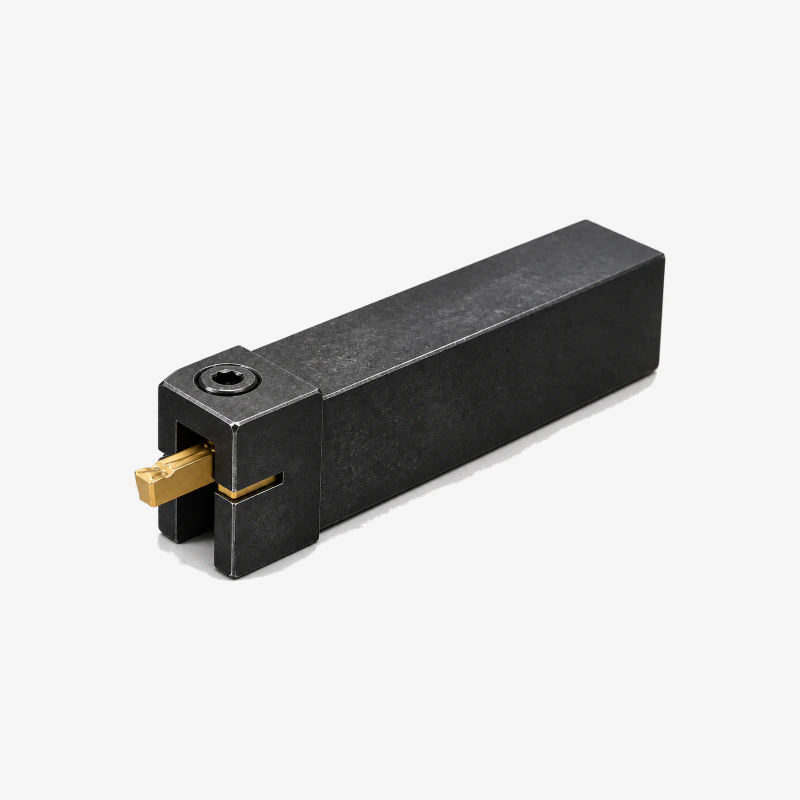

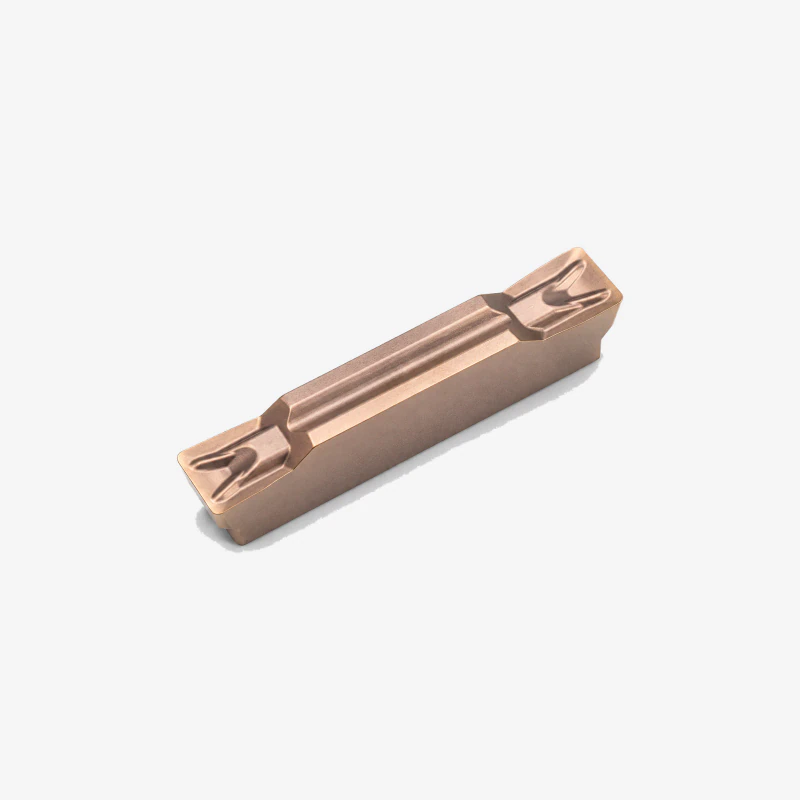

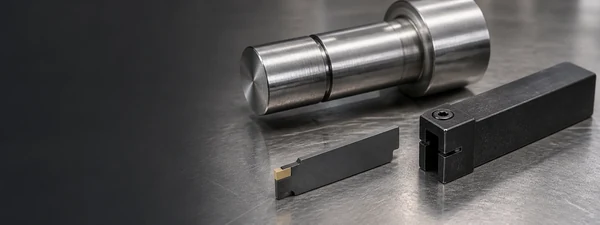

GROOVING AND PARTING
Confirm Width, Diameter and Holder Fit
Send the groove width, workpiece diameter, material and holder or insert code. We will check the matching insert family and help avoid a quotation for an incompatible seat.

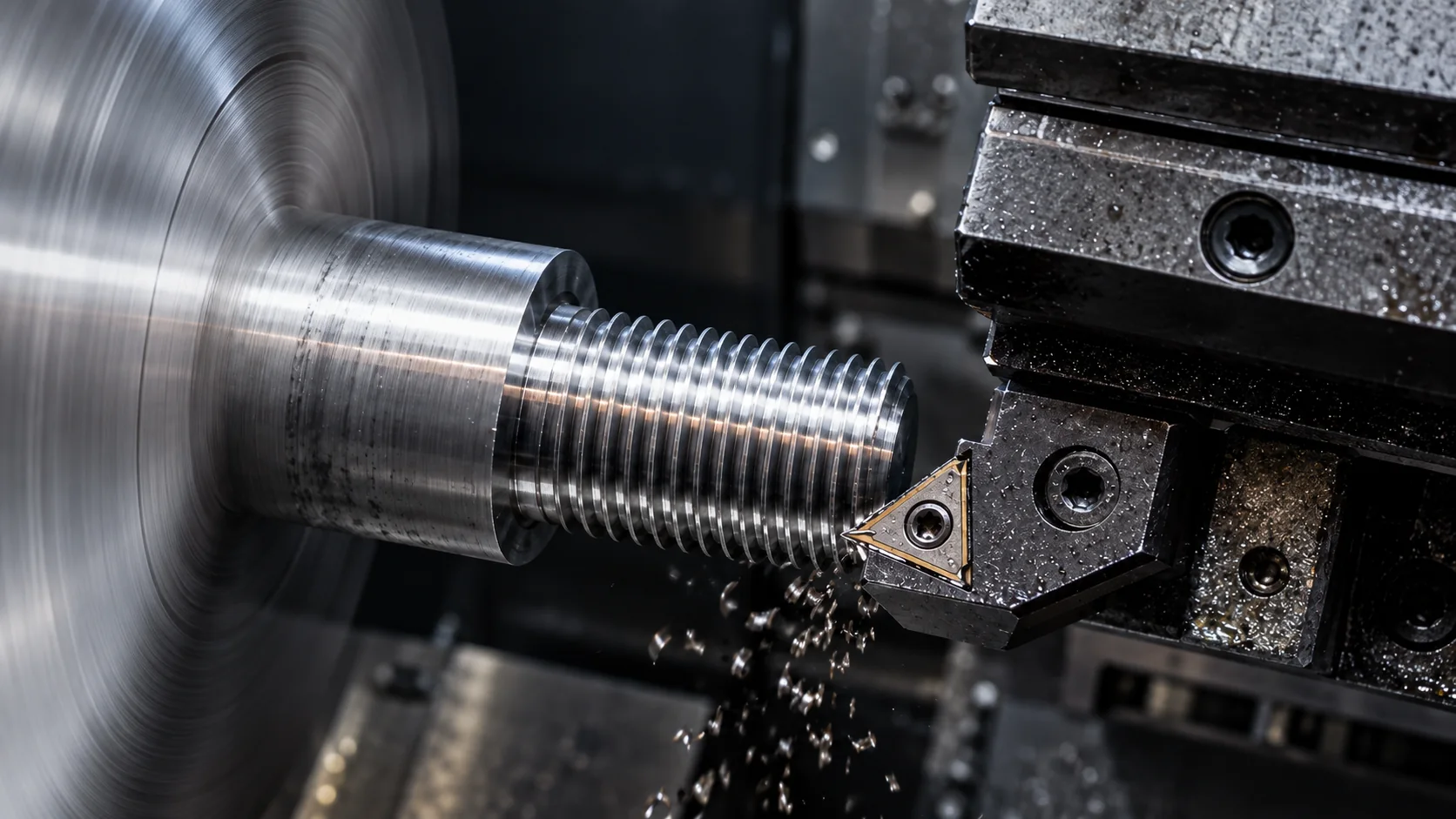

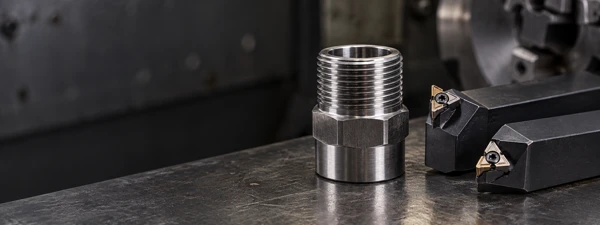

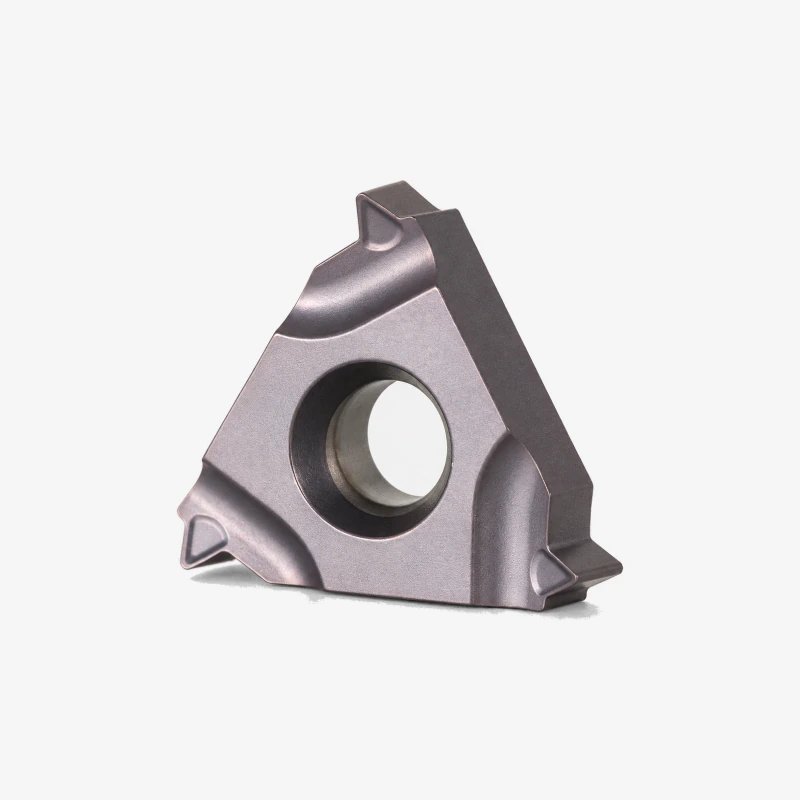

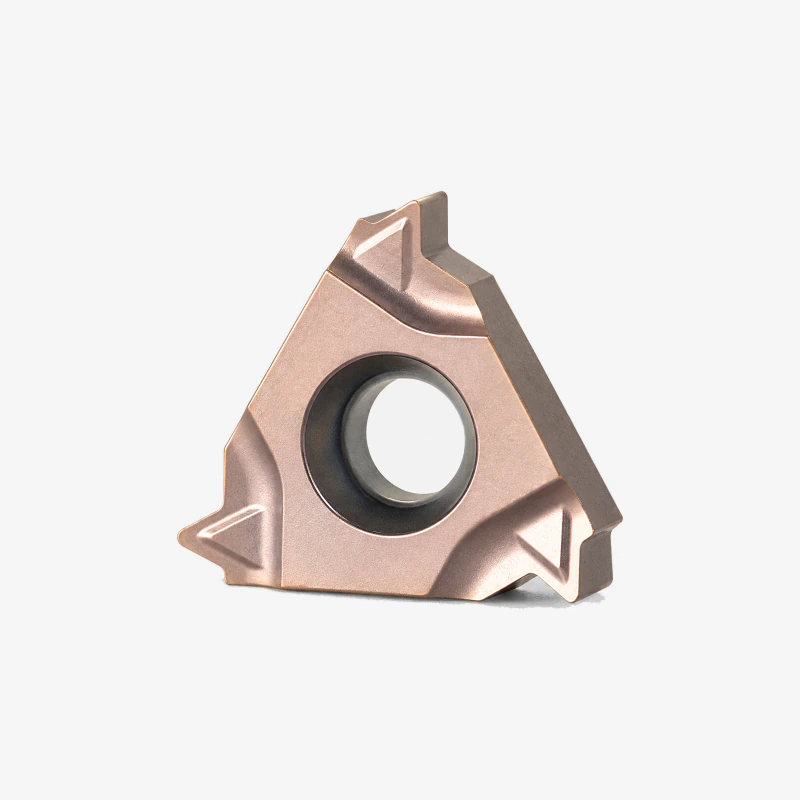

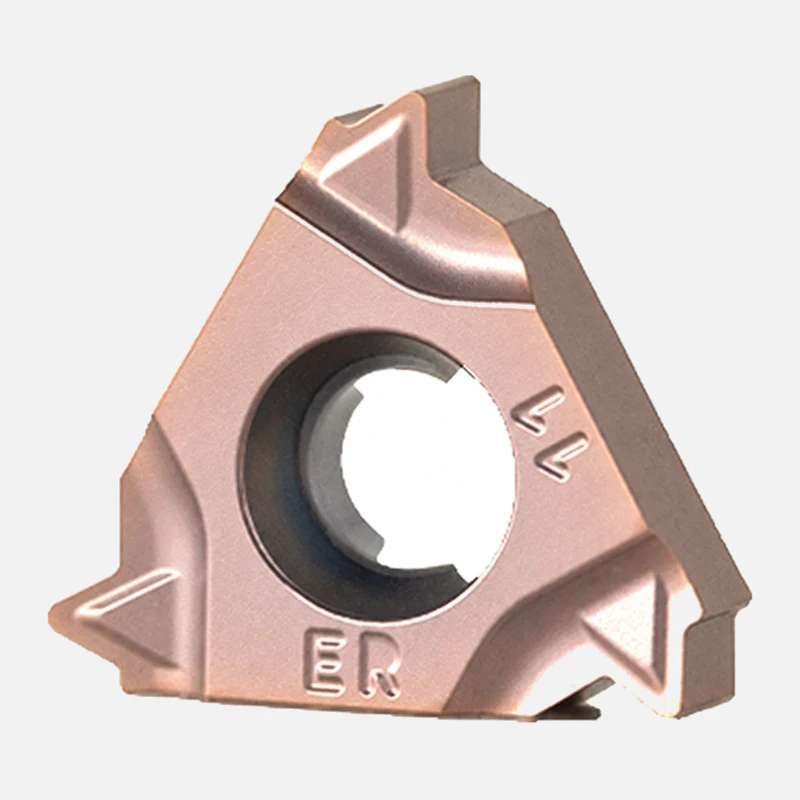

THREADING APPLICATION
Match the Thread Standard Before the Insert
Send the thread standard and pitch, internal or external operation, workpiece material and holder code. If you are unsure, send a drawing or a close photo of the existing tool.

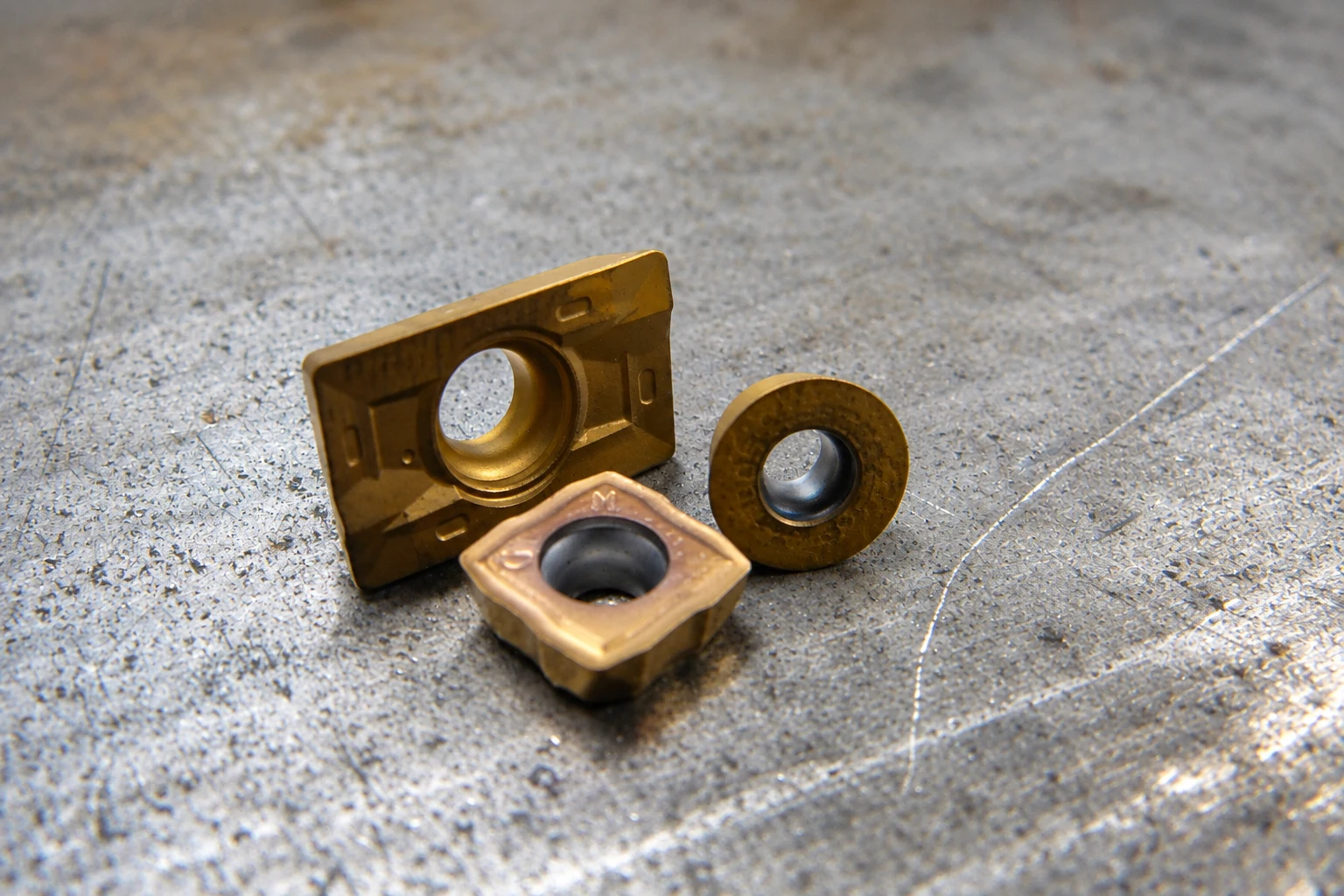

MODEL AND PHOTO MATCHING
Have a Tool but Not the Full Specification?
Send the visible model code, package label, tool photo or drawing. We will use what you have to identify the family, flag missing details and confirm the exact option before ordering.

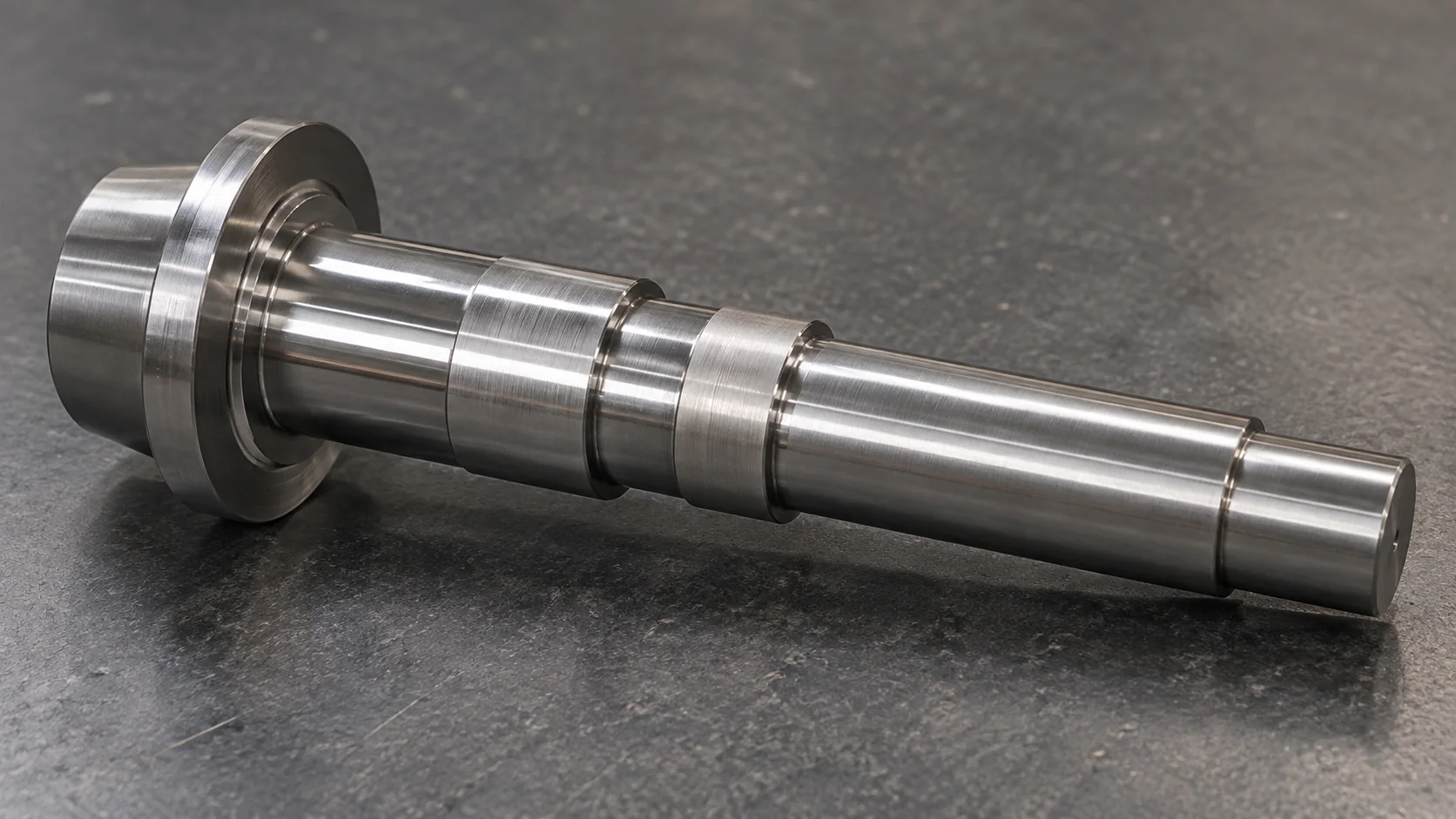

REPEAT AND REPLACEMENT ORDERS
Match a Tool to the Part You Need to Make
Send the part drawing or photo, material, operation, quantity and current tool if available. We will turn that information into a clear tooling request and confirm the practical options.
17
Drag or use arrowsSwipe
2017
Factory Established
3,200 m²
Factory Area
32 Units
Production & Inspection Equipment
12M
Carbide Inserts / Year

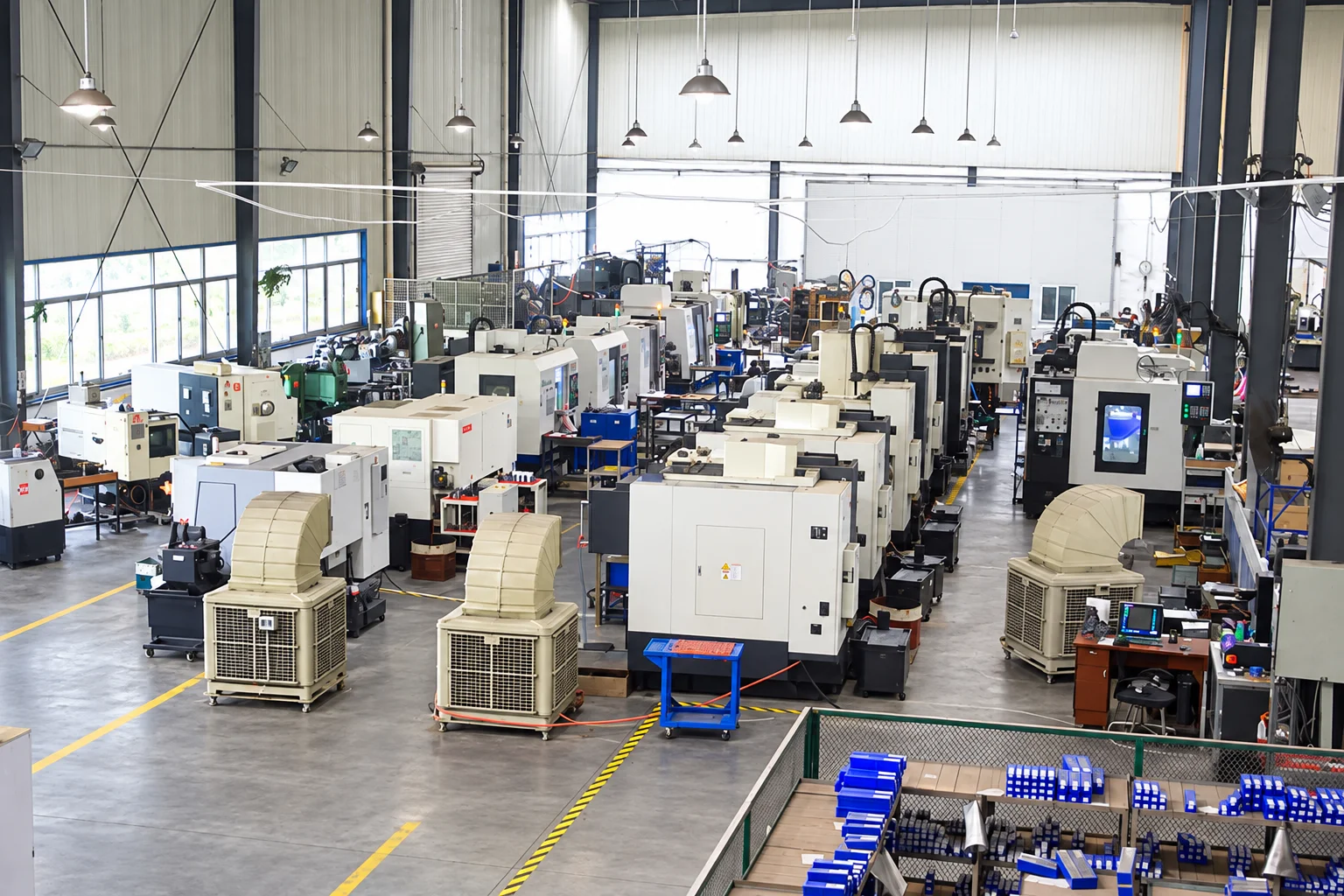

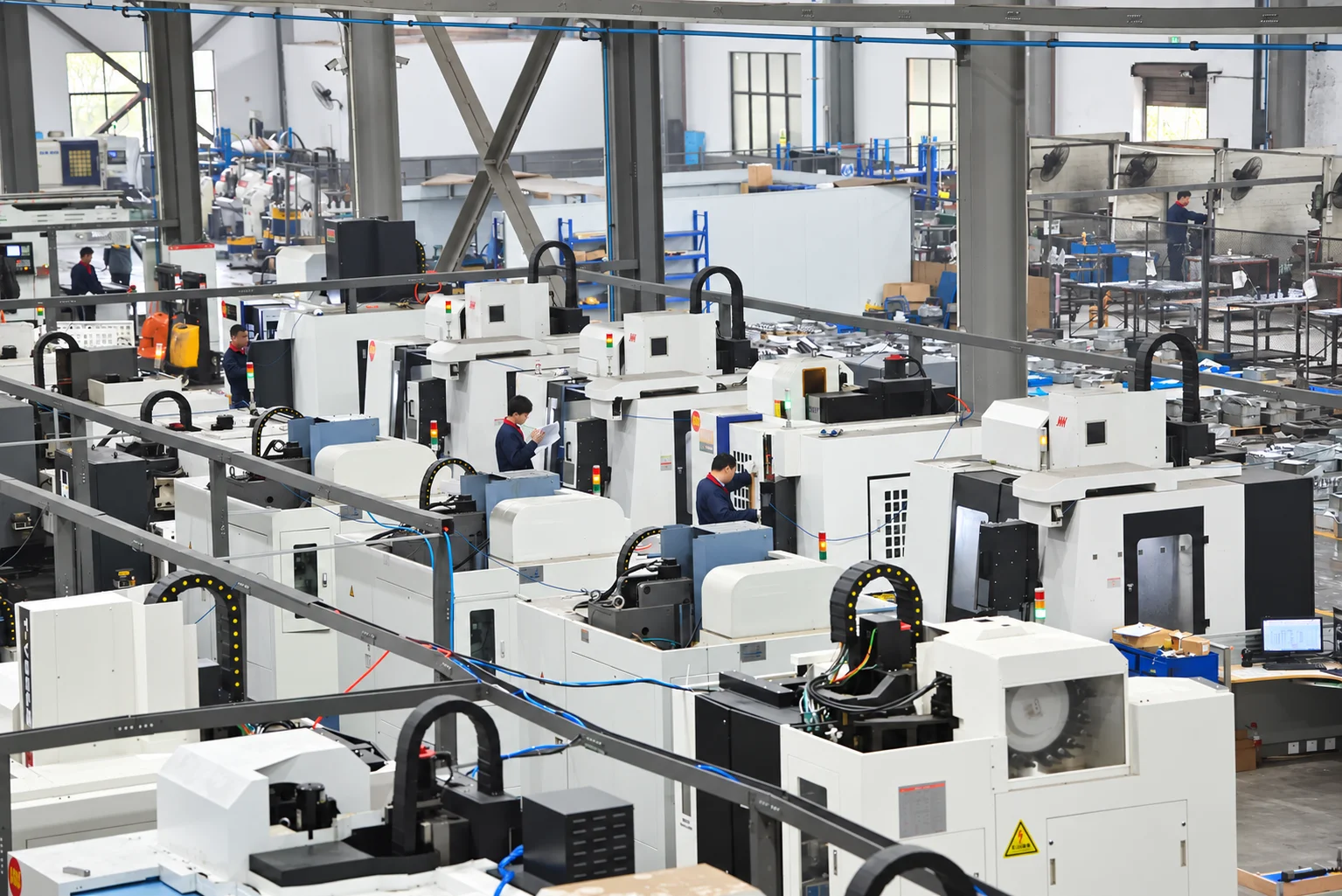

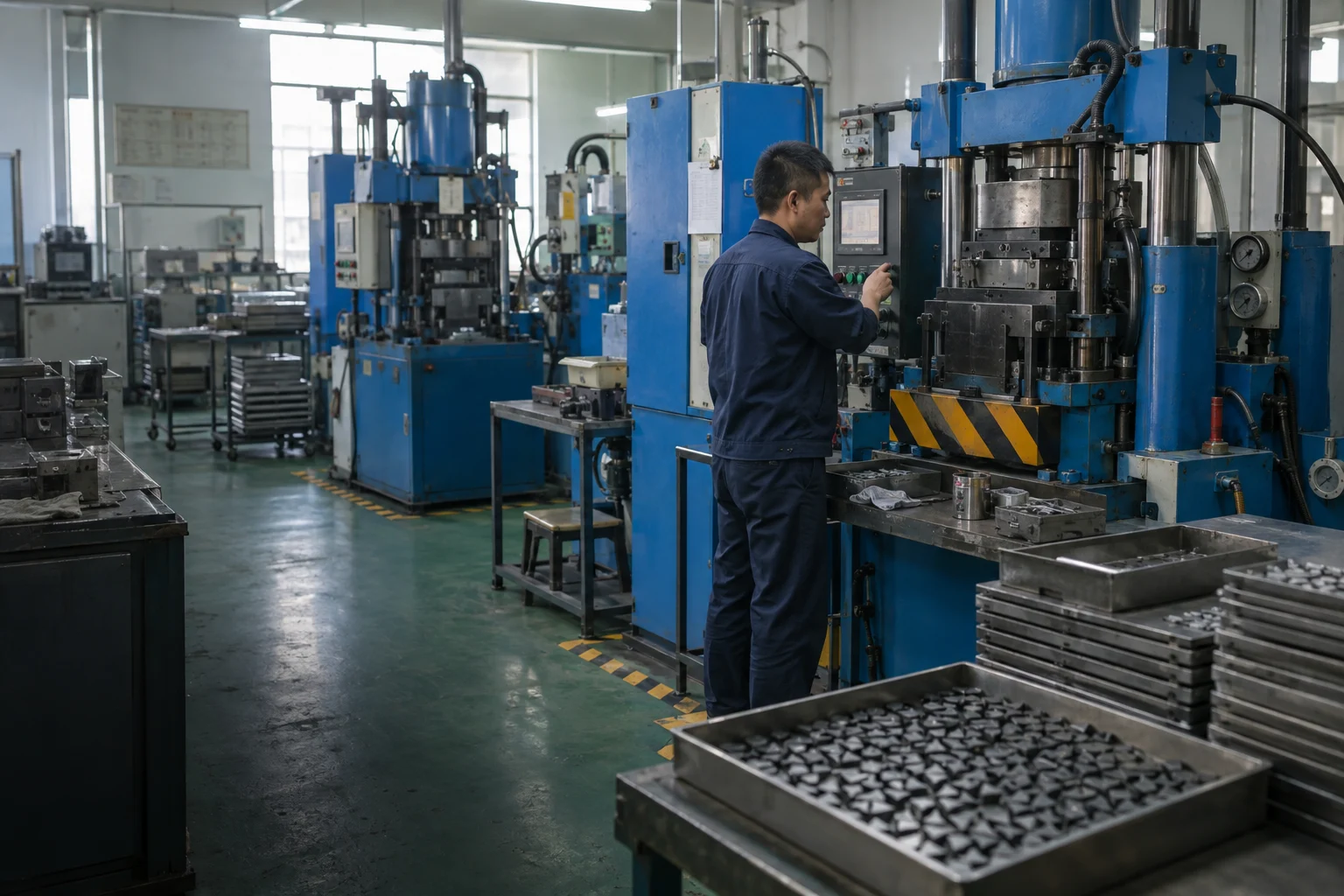

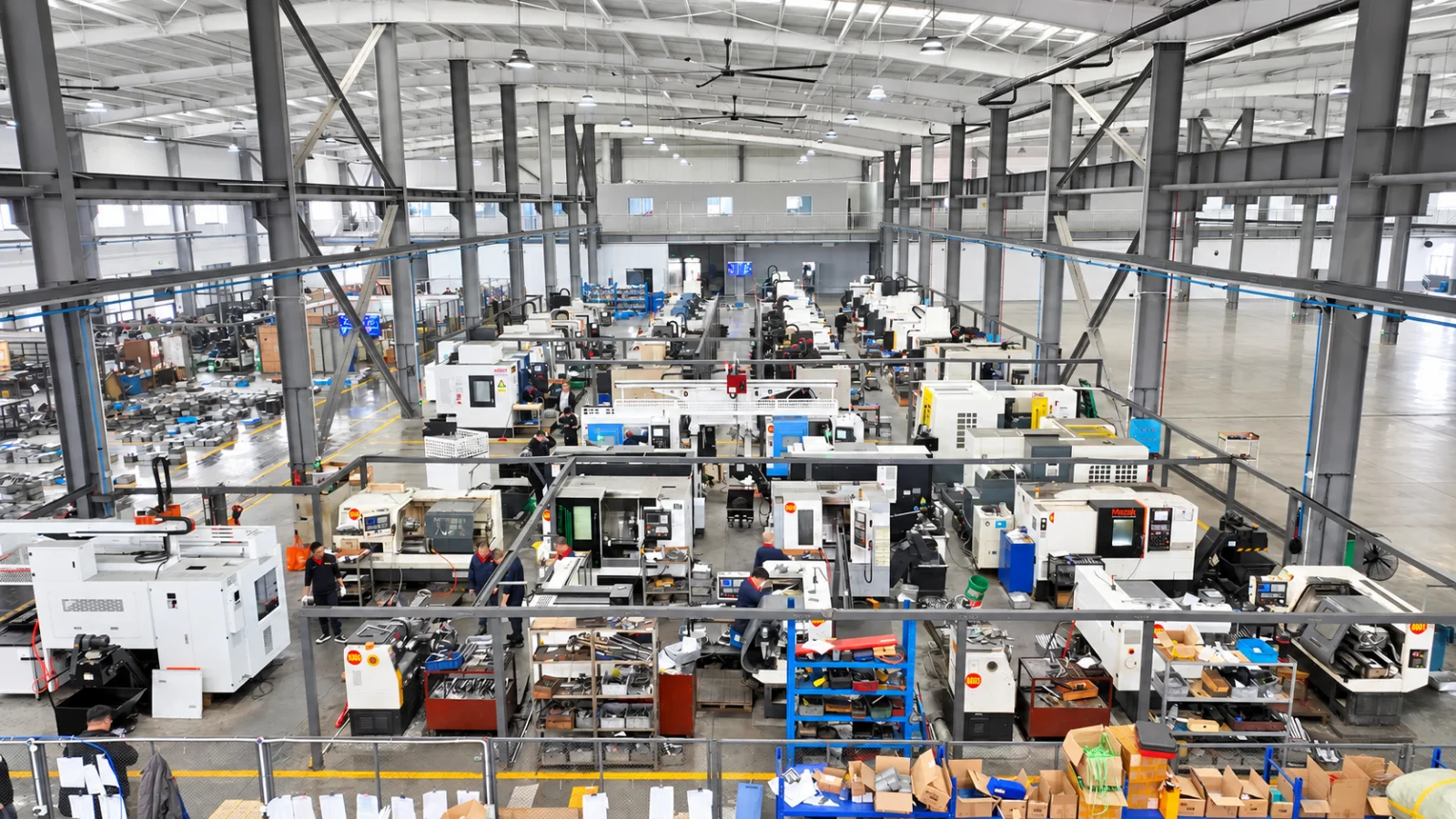

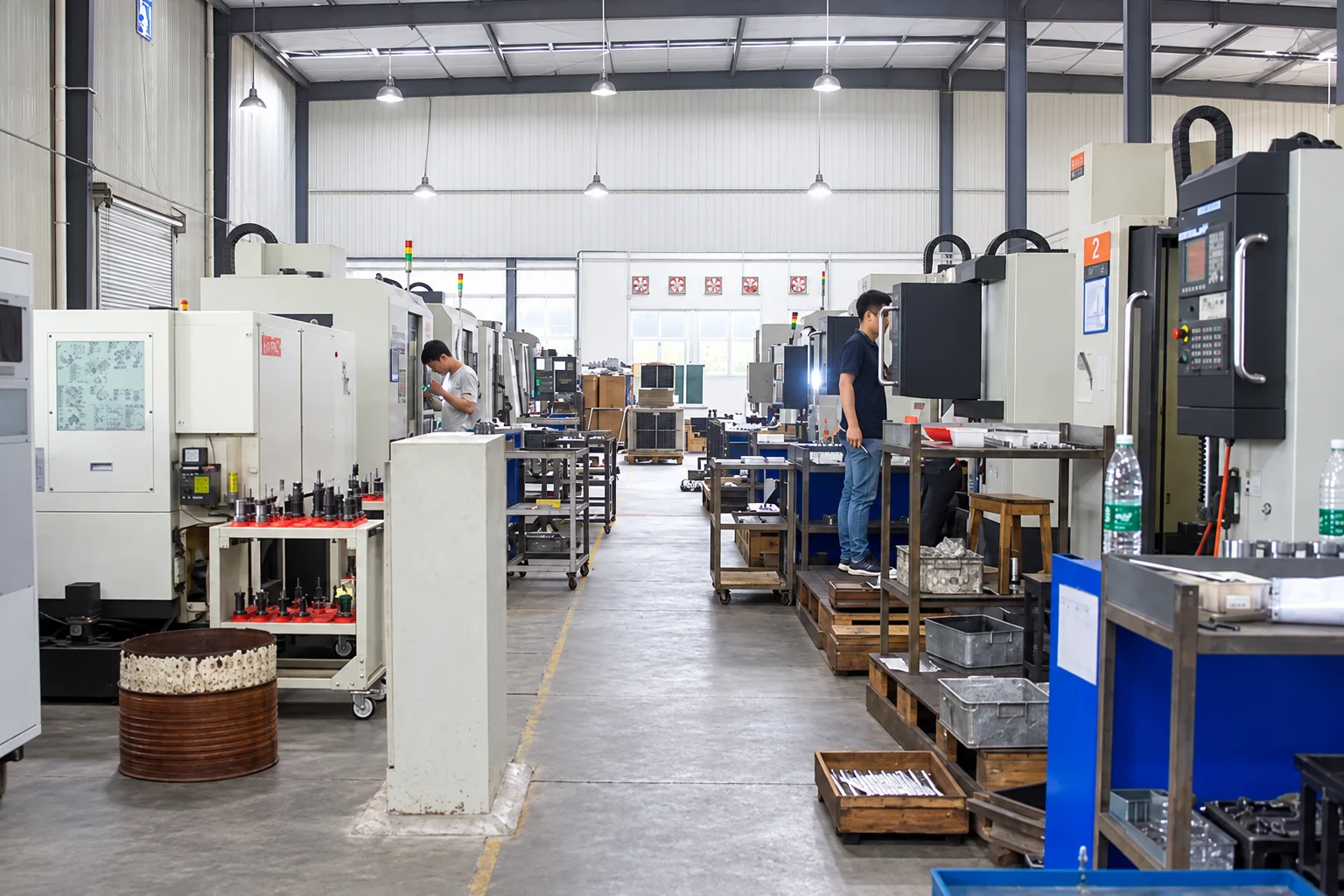

Inside Our Manufacturing Workshops
Established in 2017; 3,200 m² factory producing standard turning, milling, grooving and threading inserts, plus solid carbide end mills.
32 production and inspection units in total, including grinding, coating, cutting and dimensional inspection equipment.
Factory team: 46 employees across production and inspection.
Annual capacity: 12 million carbide indexable inserts.
CERTIFICATIONS & QUALITY DOCUMENTS
Factory Certifications & Material Reports
Need factory or product documents for purchase review? Tell us which records you require and the tool model; we will confirm the documents available for that order.
Request document copies
GLOBAL MARKET SUPPORT
CNC Tooling Support for Global Manufacturing
Supporting industrial buyers with CNC inserts, cutting tools and application-based sourcing across key manufacturing markets.
TARGET MARKET
United States
- Typical industries
- Automotive Components, General Machining, MRO
- Common inquiries
- Turning Inserts, Milling Inserts, Drilling Tools
Trial Samples, Inspection Records & Packaging
Confirm your insert requirements, review available inspection records, and discuss packaging before ordering.
Free Sample Inserts
Sample inserts are free and supplied in full factory packs of 10 inserts per box. The customer pays shipping; the cost is confirmed for your destination after inquiry.

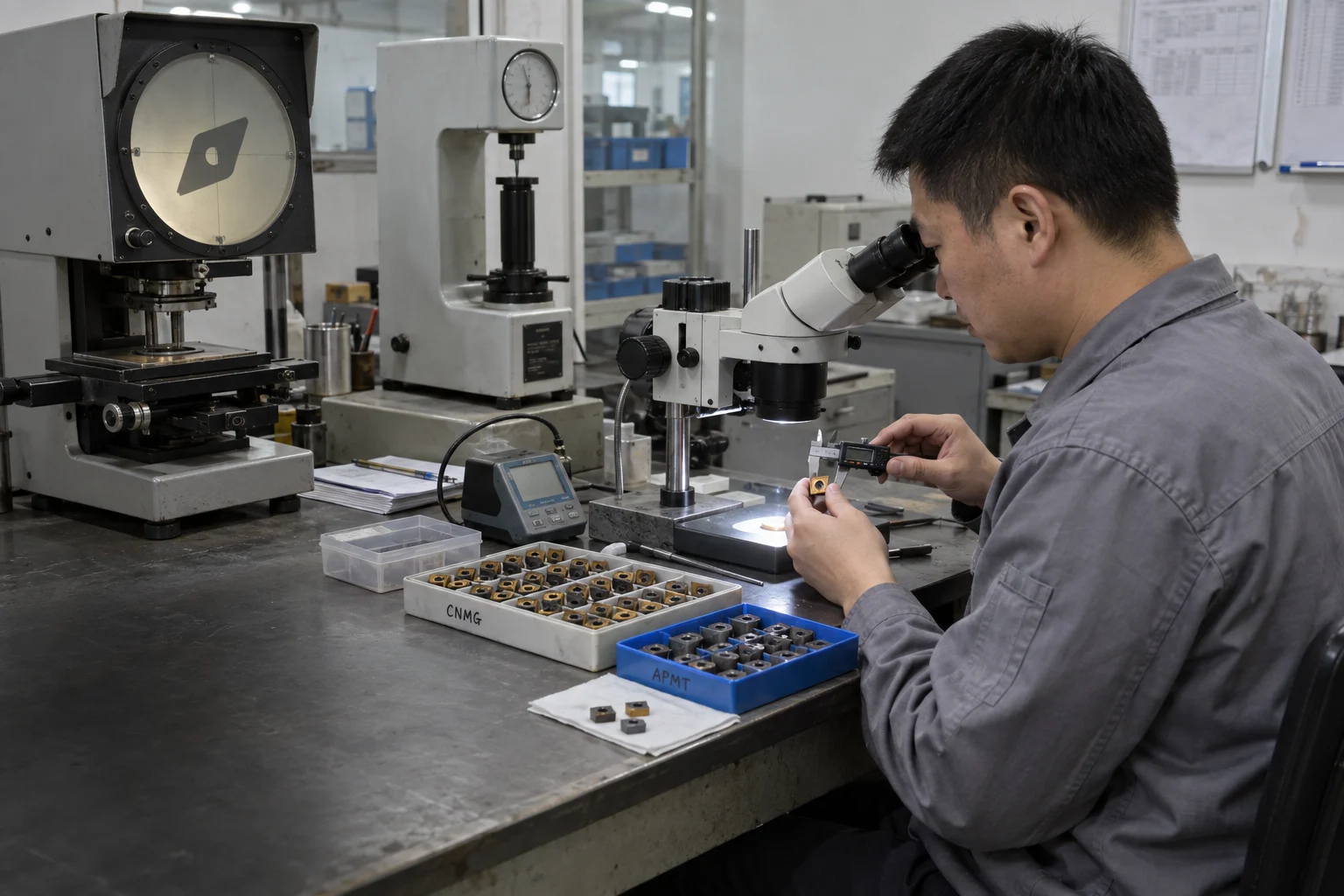

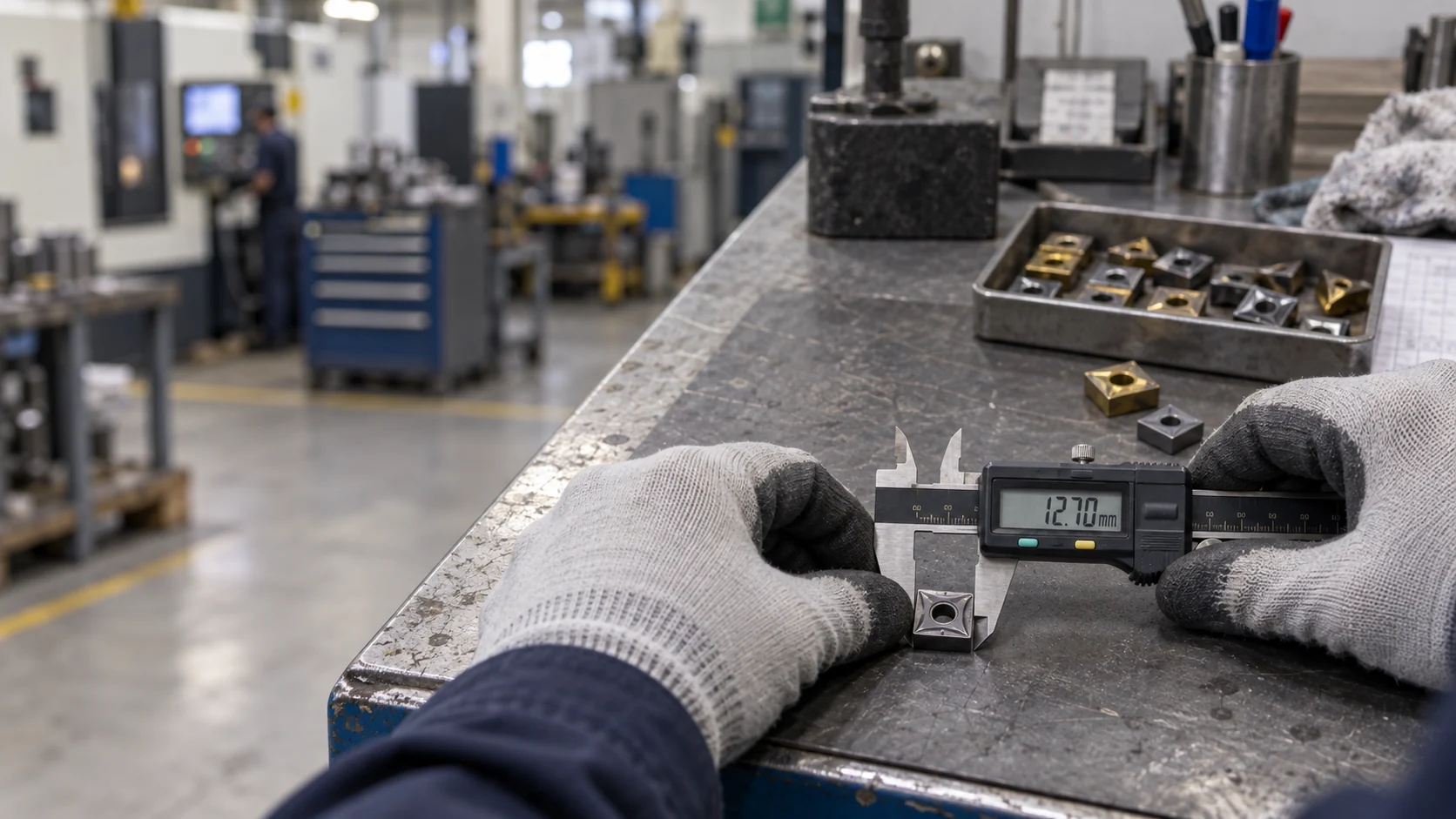

Inspection Records & Photos
Factory dimensional inspection records and actual product appearance photos are available. Material composition reports can be provided for bulk orders. Additional documentation is confirmed upon inquiry.

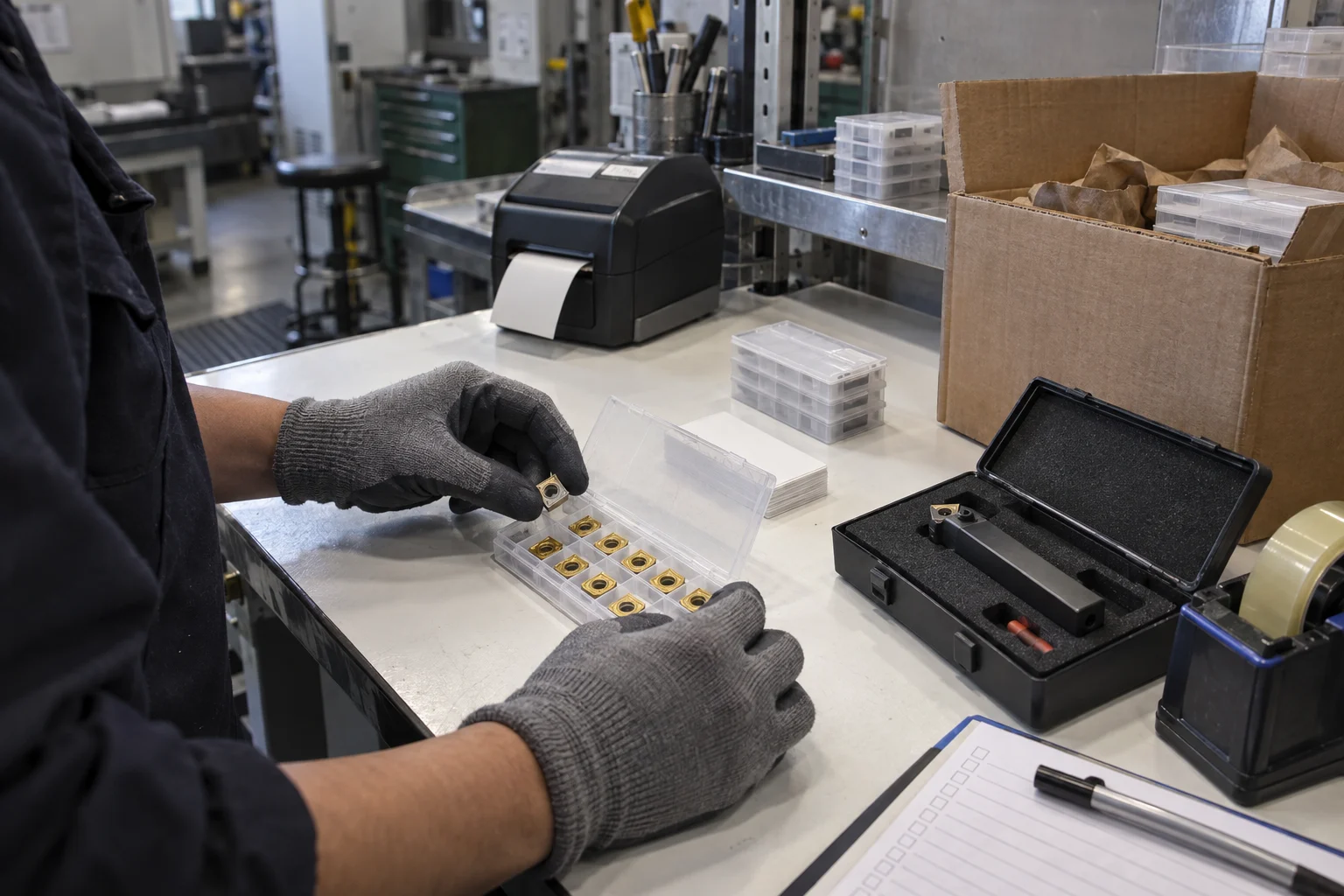

Standard & Private-Label Packaging
Standard factory plastic boxes are used by default. Customer labels and private-label packaging are supported. Minimum order quantities for custom packaging are confirmed upon inquiry.
10 inserts per box. Customer pays shipping.
Talk to Us About the Tool You Need
Ready to discuss a technical quote, trial sample or distributor order? Use the form or contact our team directly.
sales@vextrex.com
724C38, Huarong Building, 178 Mintian Road, Fu ’an Community
Vextrex combines carbide insert manufacturing with specialist tooling supply and export support. Product availability and commercial terms are confirmed for the selected specification.
VextrexStart Your Request
Choose the request type and your starting point. Add a model, drawing or job details where useful, then review the message before sending.
BUYER FAQ
CNC Cutting Tool Buying Questions
Can you match a cutting tool from a model code, photo or drawing?
Yes. Send the complete or partial model code, a clear photo or the drawing you already have. If known, add the machining operation, workpiece material, holder or cutter model and required quantity. We will check the tool family, critical dimensions and holder or cutter compatibility before recommending options; a complete technical specification is not required for the first inquiry.
Which carbide insert model families can you quote?

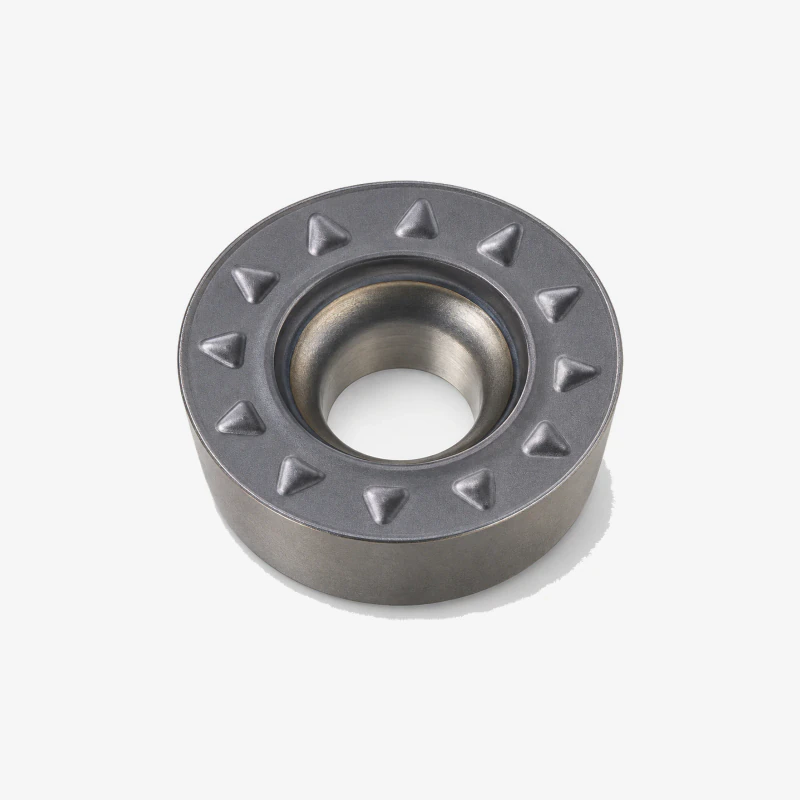

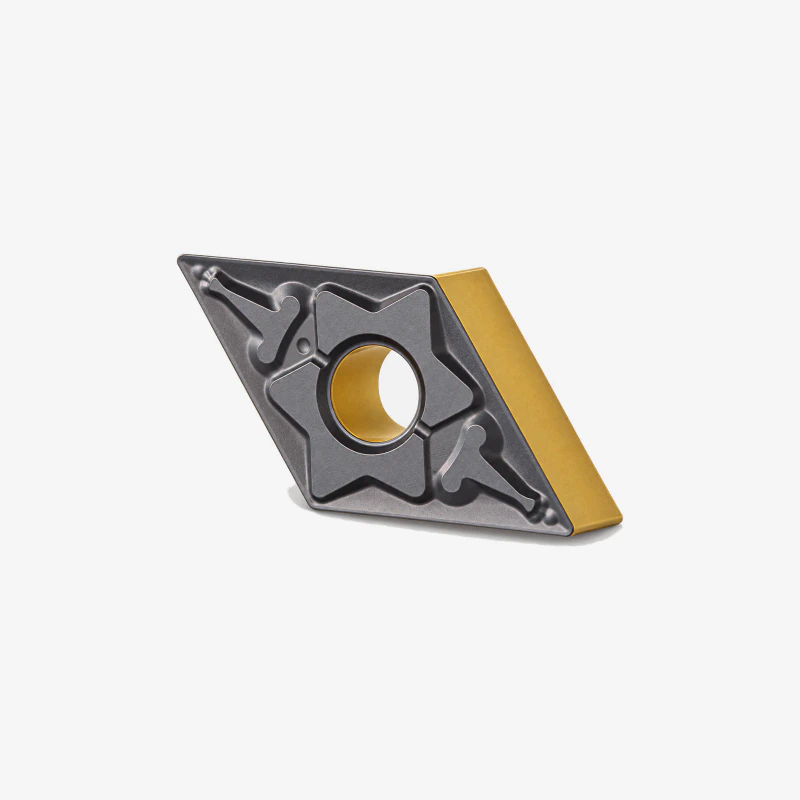

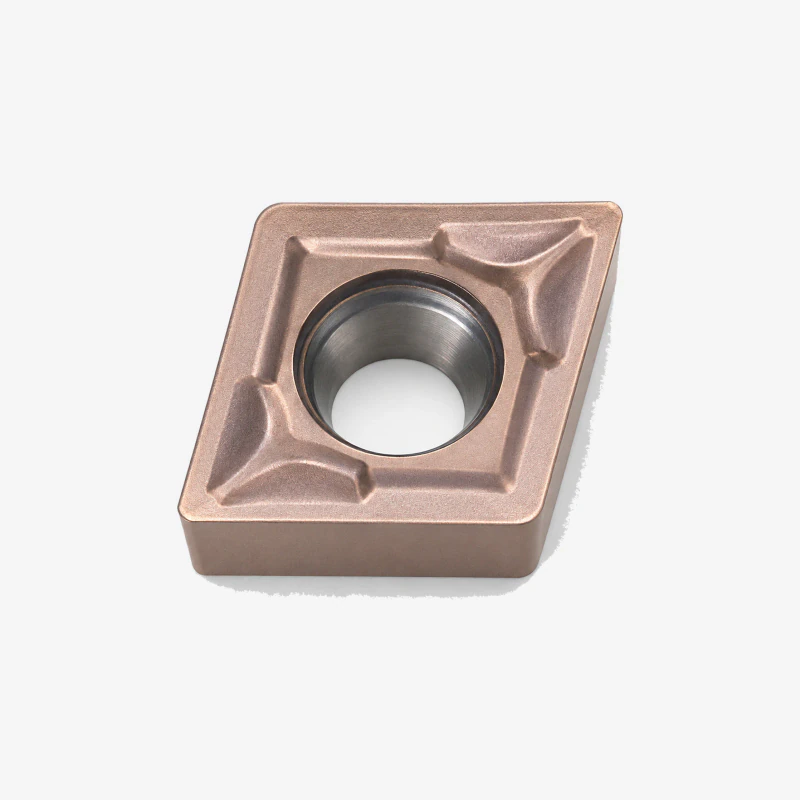

Our range covers common turning insert families such as CNMG, WNMG, CCMT and DNMG; milling insert families such as APMT and RPMT; grooving inserts; threading inserts; and matching tool holders. Send the exact model, grade and quantity you need. We will confirm the specification, current availability and lead time before quotation.
What is the minimum order quantity, and can I request samples?
For common standard inserts, a 5–10 piece trial may be available with the product charge waived and freight paid by the buyer. Sample eligibility, minimum order quantity and production terms depend on the confirmed model, grade, quantity and destination. We confirm these terms before dispatch or order acceptance.
How is the quotation calculated, and do you offer volume pricing?
The quotation is based on the exact model, substrate grade, coating, chipbreaker, quantity, packaging and delivery requirements. Larger quantities receive lower unit pricing, calculated for the confirmed order quantity. Send the model or application, quantity and destination country, and we will return the suitable option with stock status, unit price, lead time and packing details.

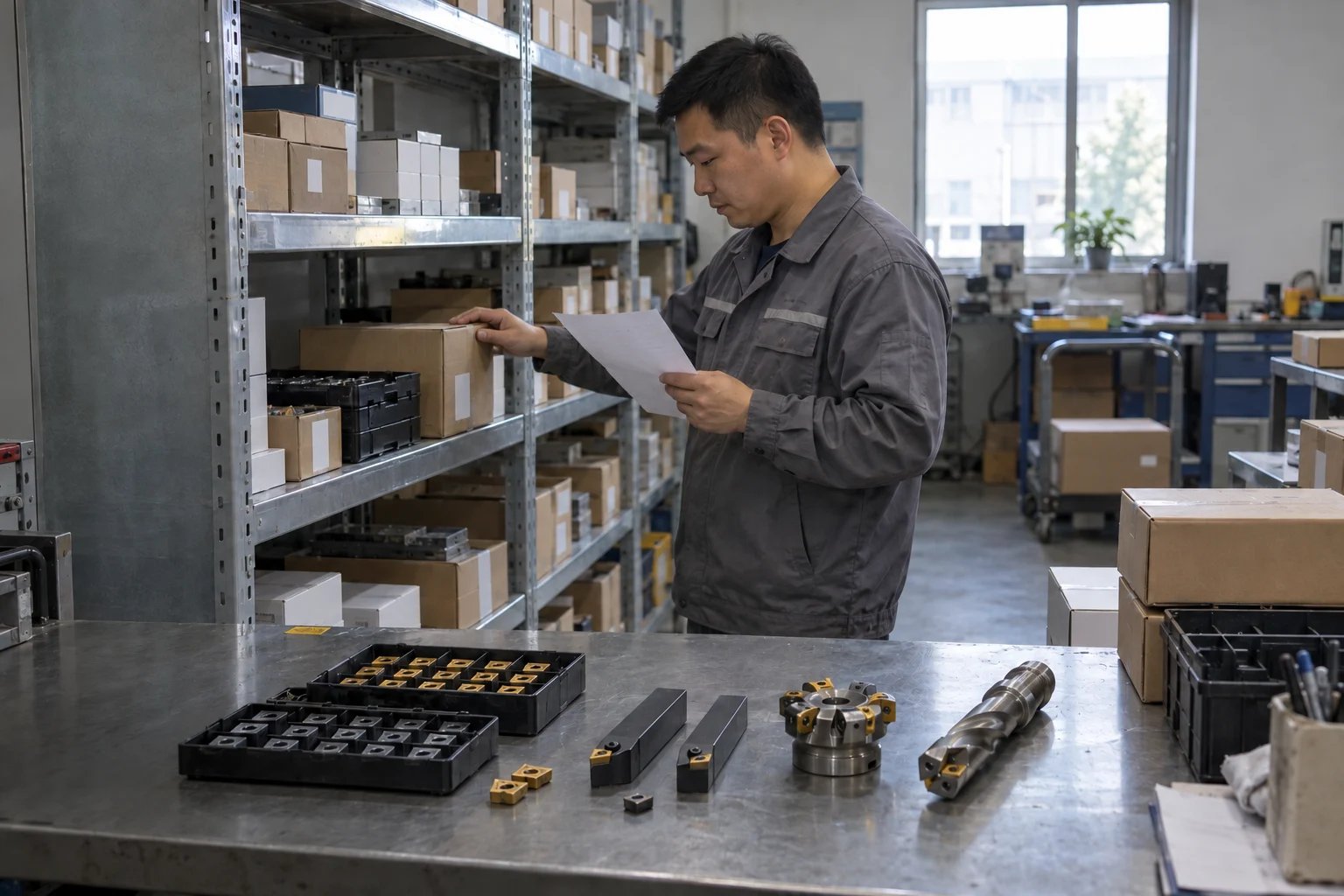

How soon can stock, production and custom orders ship?
Shipping time depends on the confirmed model, grade, quantity and destination. We check current stock and production capacity for your specification, then provide a dispatch estimate with the quotation before the order is accepted.
What inspection, traceability and pre-shipment evidence can you provide?
Depending on the order, we can provide dimensional inspection records for outside dimensions, thickness, nose radius and edge profile, together with substrate-hardness or coating-thickness information. Products carry batch identification for traceability. Pre-shipment photos, short videos, material or coating documents and a redacted inspection-report sample can be provided when required.
